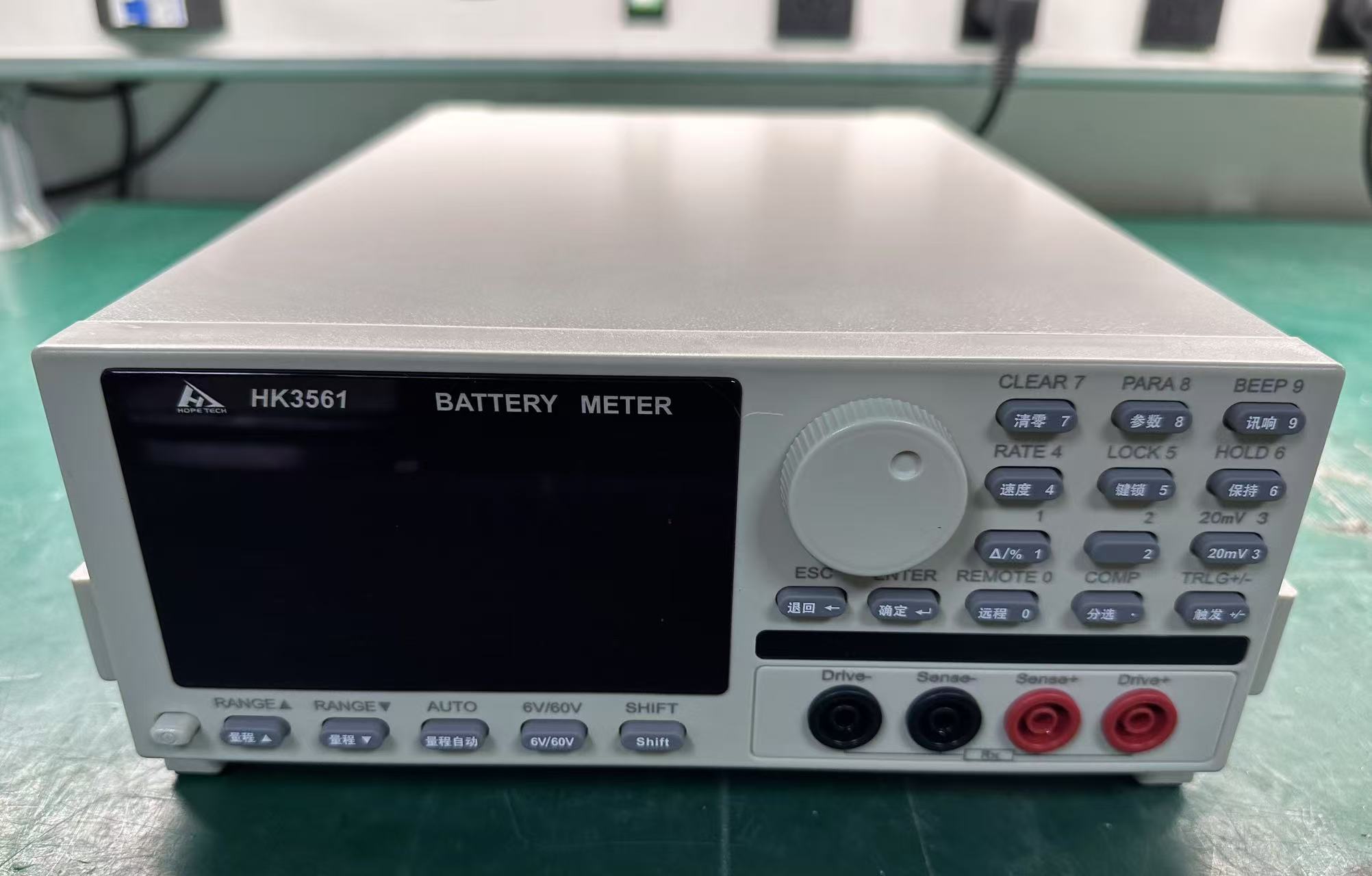

HK3561 Battery Internal Resistance Meter
Thank you for purchasing HK3561.It is a contact-resistance meter capable of providing quick and accurate measurements for the contact
resistance of elements such as relays, switches, and connectors and so on.
The HK3561 applies the principle of double-two-terminal to measure.
It is capable of high-speed, high-precision, high-resolution resistance measurement. It is capable of measuring the resistance of 10Ω~ 3.2kΩ,
and showing the largest number of 3200. The basic accuracy of 3561 is capable of being up to 0.5%.The voltage measurement range of 3561 is
1mV ~ 60V, the basic accuracy is up to 0.1%. The maximum measurement speed of 3561 is capable of being up to 20 times / sec.
The instrument has professional comparator function. It has 30 groups
of records for bin out. The 3561 is capable of a optional Handler interface,
which is used in automatic comparator system to complete automatic
assembly line measurement. Built-in RS232C interface and optional
equipped IEEE-488 interface can be used for remote control and data
acquisition and analysis.
Computer remote control commands are compatible with SCPI
(Standard Command for Programmable Instrument), is capable of
completing efficiently remote control and data acquisition functions
Economy: HK3561 Measuring Range：10μΩ-3.2kΩ ； Accuracy： 0.5%
Measuring Range：0V-60V ；Accuracy： 0.1%
HK35611technical specifications include the basic technical indicators and
equipment allowable scope of measurement. These specifications have been
achieved before leaving the factory.
Resistance Measurement
1、 Basic resistance accuracy: 0.5%
2、The greatest displayed number: 3200
3、 Six measurement range automatically or manually provide from 10m
Ω to 3.2k measurement range.
4、Four-terminal measurement
Voltage measurement
5、 Voltage basic accuracy: 0.1%
6、 The largest displayed number of 6000
7、 Auto-range: 6V/60V
Other
1、 High-speed and high-precision measurement
Even the speed is up to 20 times every second, it can still maintain high accuracy measurement.
2、Dual display
Show the value of direct-reading measurement as well as show the absolute bias (DABS), the relative deviation (D%), and results of comparator (GD / NG).
3、 A variety of ways to trigger
Internal trigger, external trigger and remote trigger
Main function

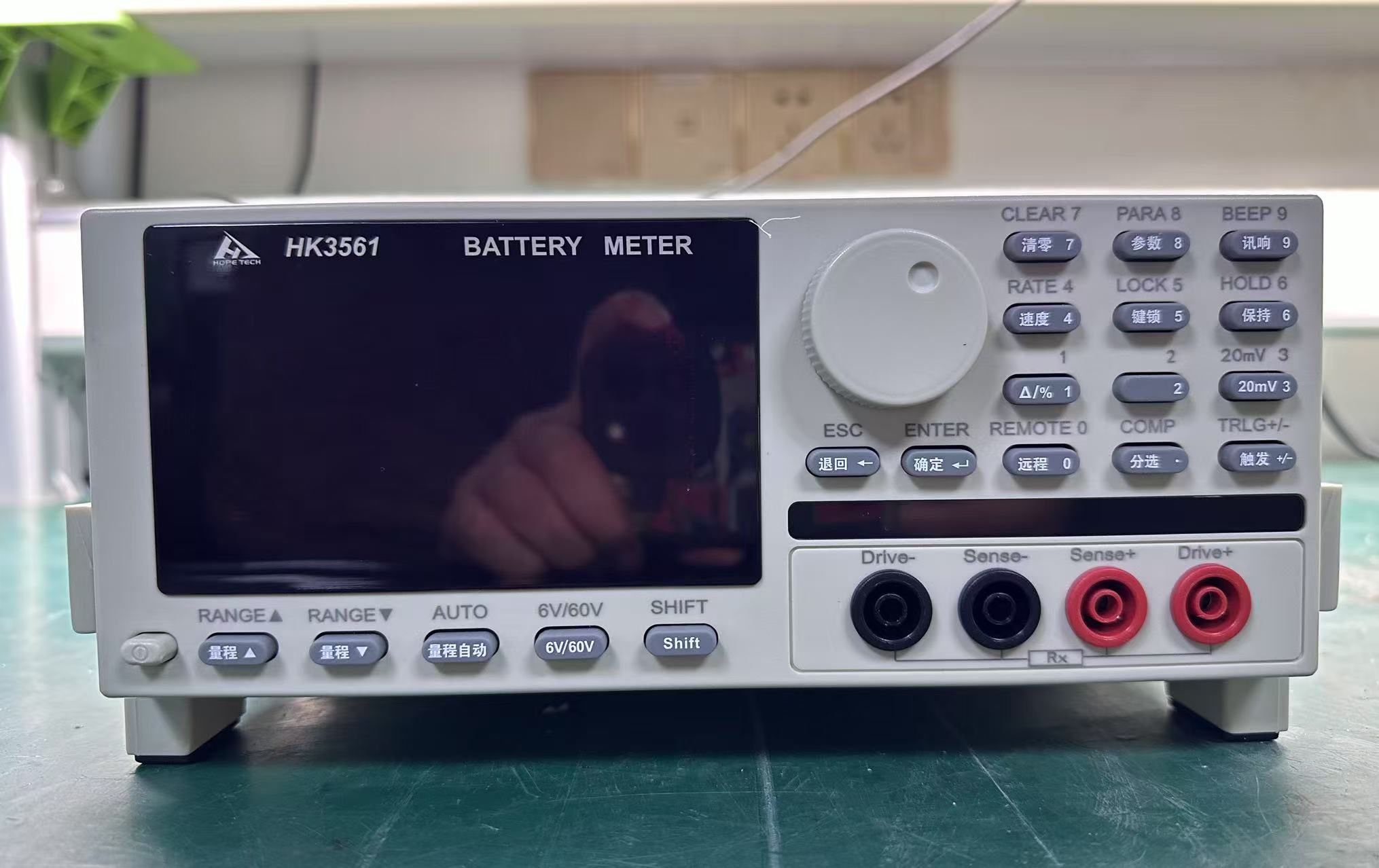

1、 High-brightness, ultra-clear and four-color VFD display
The display window is 98mm×58mm, and shows a wide range of parameters at the same time.
2、Correction:
The function of Zero adjust.
3、Comparator features:
There is 30 built-in compare data which can judge the measured on GD / NG, HI / IN / LOW.
4、Comparator function shows: Using signs directly display on the
VFD and (or) using the display window.
5、 Comparators output: Output more detailed results of the selection
by RS232C or through matching Handler interface or IEEE-488 interface.
6、 Buzzer: The voice output of the comparator result.
Users can set up GD or NG beep-mode according to their own Inquiry.
7、Keyboard-lock function.

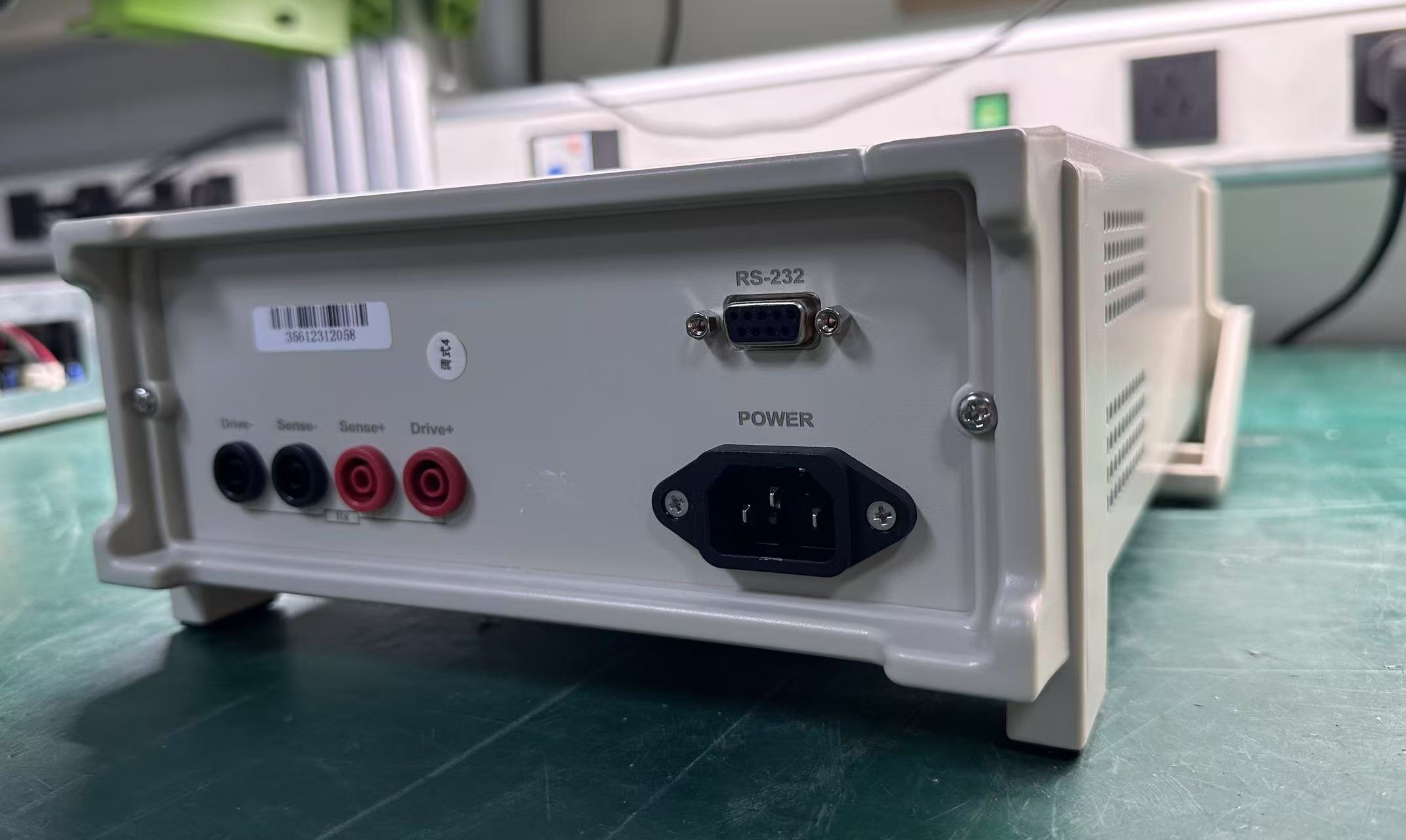

8、 Built-in RS232C: Using three-wire simple serial interface.
Compatible with SCPI instruction set, ASCII code transmission,
completing all equipment functions.
9、 Optional Handler Interface: Output the compare results, input
comparison gear, input the trigger signal and output EOC signal.
10、 Optional interface features:
10.1 IEEE-488 interface: Compatible with SCPI instruction set.
Transmit bus data and command by the ASCII code to complete allequipment functions. It is compatible with IEEE-488.1 and IEEE-488.2.
