MeasurementMicrophoneCRY341-Baichuanelectronics

Microphones & Preamplifiers/

Measurement Microphone CRY341

1、Meet IEC 61094-4:1995 Measurement microphones―Part 4: Specifications for working standard microphones

2、Meet GBT 20441.4-2006 Measurement microphones―Part 4: Specifications for working standard microphones

  • Product Detail

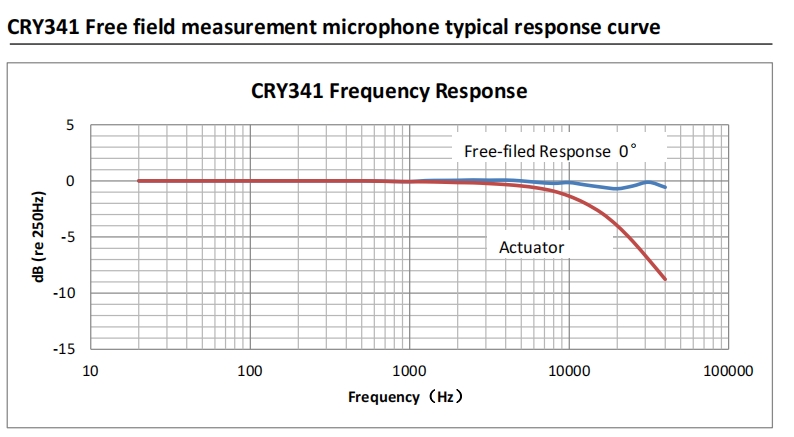

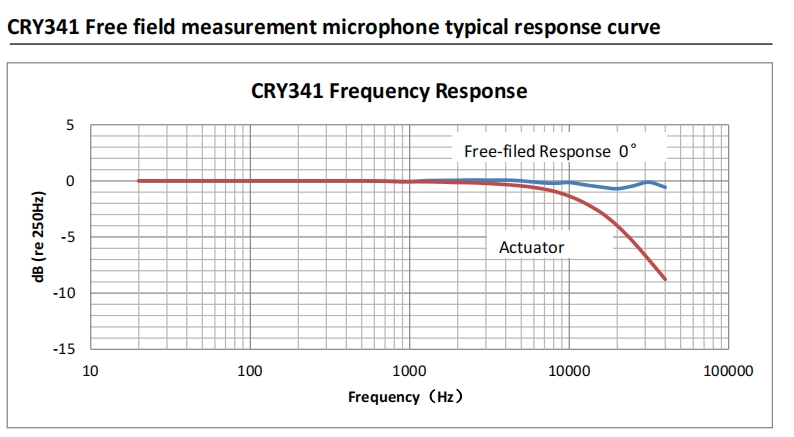

  • CRY341 Free field measurement microphone typical response curve

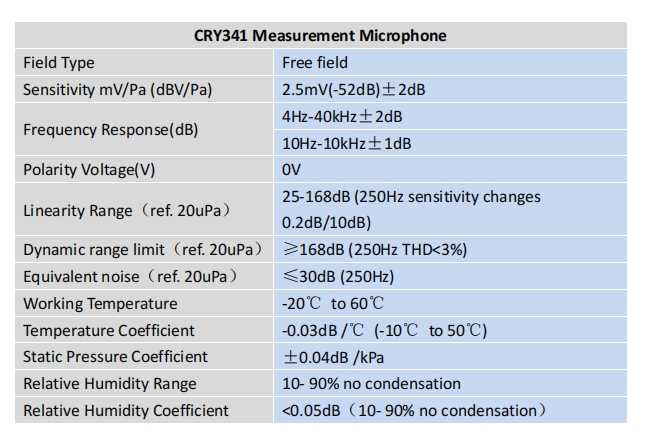

CRY341 Measurement Microphone

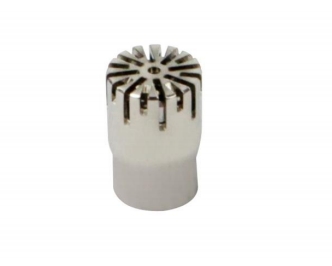

CRY341 measurement microphone is a pre-polarized 1/4 inch free field condenser microphone. It is mainly used for

high-level and high-frequency measurements since the sensitivity is low. It can measure high sound pressure

levels to 168dB. The Titanium membrane can achieve high stability and accuracy in harsh environments. It can

be compatible with CRY504 preamplifier, and it also can be compatible with other brands like B&K, G.R.A.S, etc.

It applies to the acoustic tester, multi-channel noise analyzer, and other instruments.

Preamplifier Specification CRY547

Microphone Power Supply CRY575
