ST60 Spectrophotometer (Core Technology)

Spectrophotometer ST60 is a spectrophotometer developed by TS series core technology, using built-in photodiode array (double 26 groups) sensors, and an imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of the ST60 spectrophotometer is easily controlled within 0.025, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.

Spectrophotometer ST60 is equipped with 4 kinds of measuring apertures, with wider adaptability, accurate color measurement, and stable performance. It is used for accurate color measurement and quality control in plastic electronics, paint ink, textile, garment printing and dyeing, printing, ceramics, and other industries, and can be used for fluorescent sample measurement.


  • Product Detail
  • Features
  • Technical specification
  • After-sales services

The twin sister ST series of the TS series is launched grandly, inherits the core technology of large-area array sensor and grating splitting in the field of color detection, and acutely analyzes the strong and weak light in 300-1100nm band. Our TS series has always been imitated but never surpassed. TS series since its birth has been adhering to quality first, with the purpose of quality, after years of continuous improvement, we can proudly say: ST series, let color measurement is very accurate! In the future, 3nh will continue to practice the mission of “specialized and innovation” enterprise and high-tech enterprise, overcome difficulties, and continue to innovate on the road of testing instruments so that our partners can have a wonderful high accuracy and quality measurement instrument.

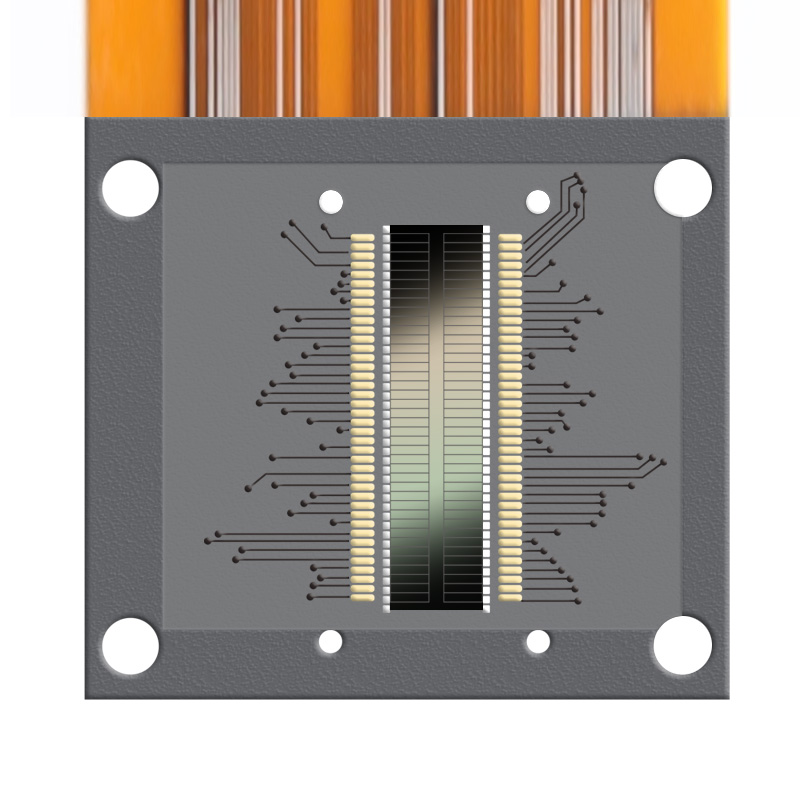

1. Large area photodiode array (dual 26 arrays) sensor

A larger area of double 26 array sensor, strong light saturation, weak light sensitivity, and a wider spectrum response range, to ensure the instrument measurement speed, accuracy, stability and consistency, independent core technology, and international standards of the same platform, to achieve complete compatibility.

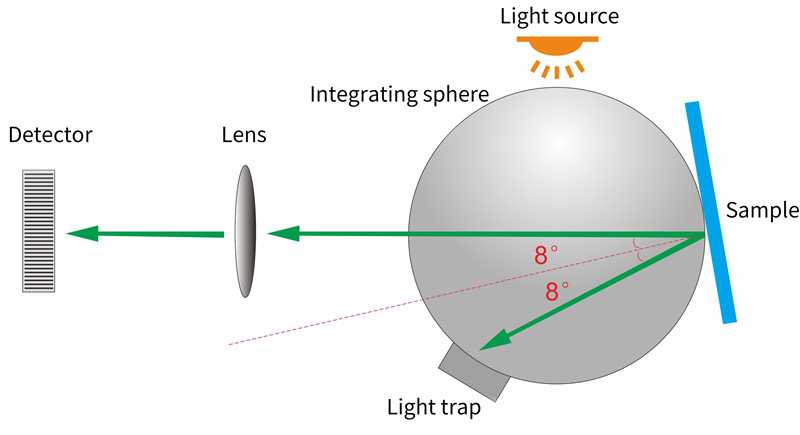

2. Adopt D/8 structure and SCI/SCE mode

Spectrophotometer ST60 uses a widely international use D/8 optical structure, SCI/SCE (Specular Component Included/Specular Component Excluded) synthesis technology, supports SCI+SCE at the same time fast measurement, test time of about 1.5 seconds.

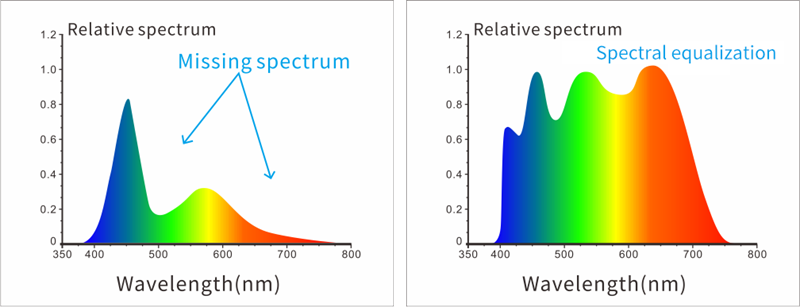

3. Combination of full spectrum LED light source and UV light source

The use of a 360-700nm full spectrum LED light source ensures sufficient spectral distribution in the visible light range, avoiding the spectral loss of specific bands, strong light will not be saturated, weak light is more sensitive, and fluorescence samples can be easily measured.

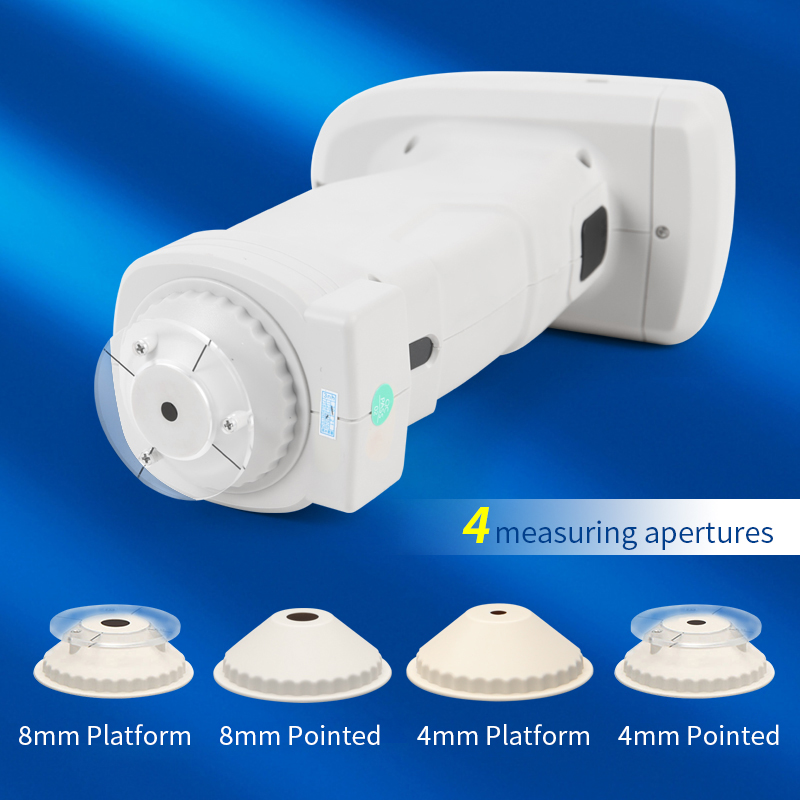

4. Equipped with four kinds of measuring apertures to meet the most samples measurement requirements

Spectrophotometer ST60 factory standard with 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, and 4mm tip aperture, a total of four measuring apertures, to meet the measurement needs of most special samples.

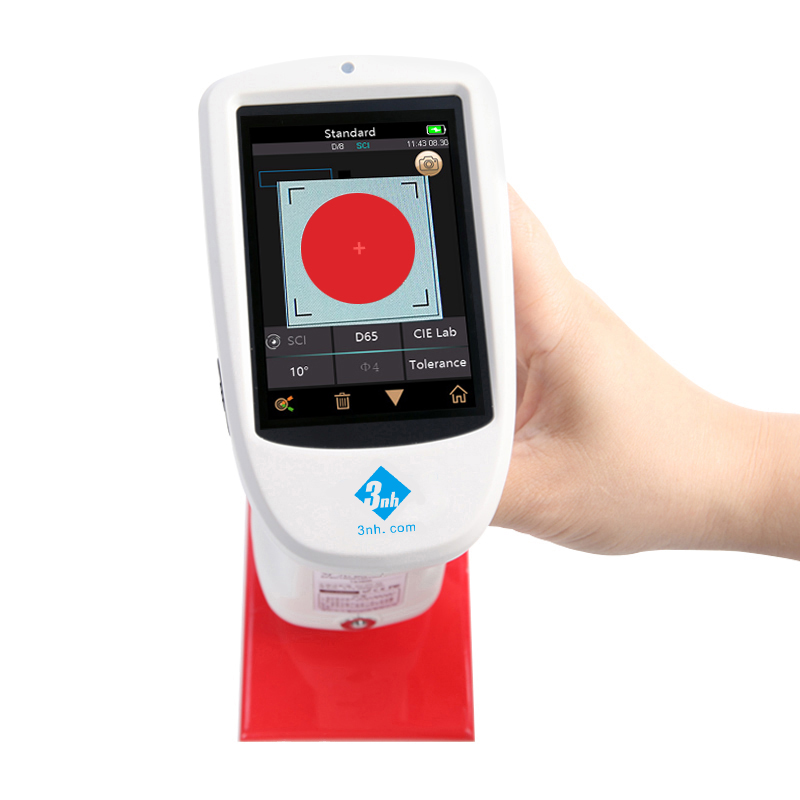

5. Camera positioning can clearly observe the measured area

The ST60 spectrophotometer has a built-in camera. Through the real-time scene-taking of the camera, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

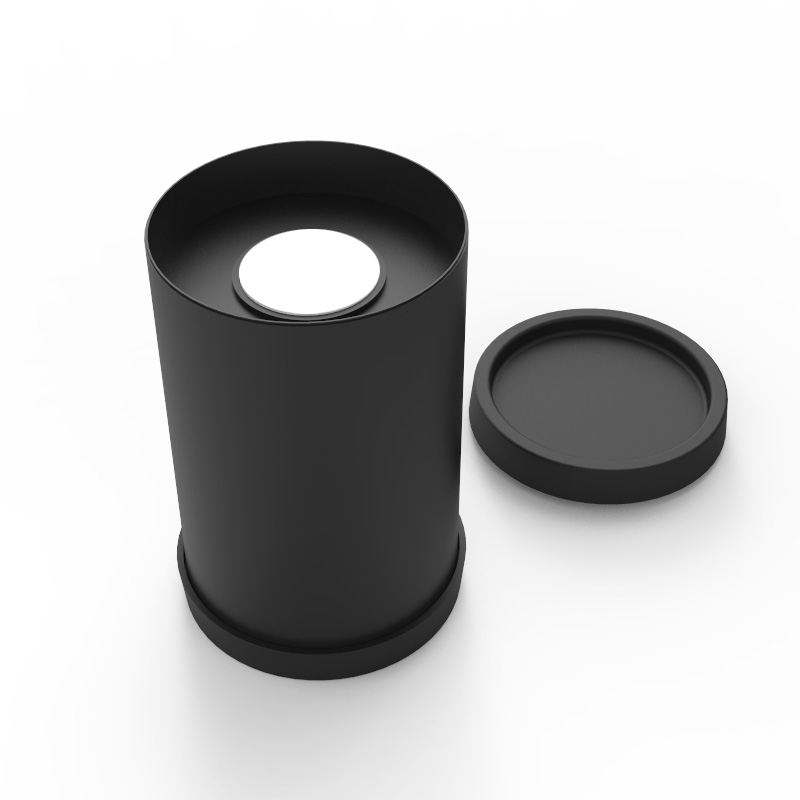

6. Non-contact automatic calibration, professional imported whiteboard, more wear-resistant, dirty, stable

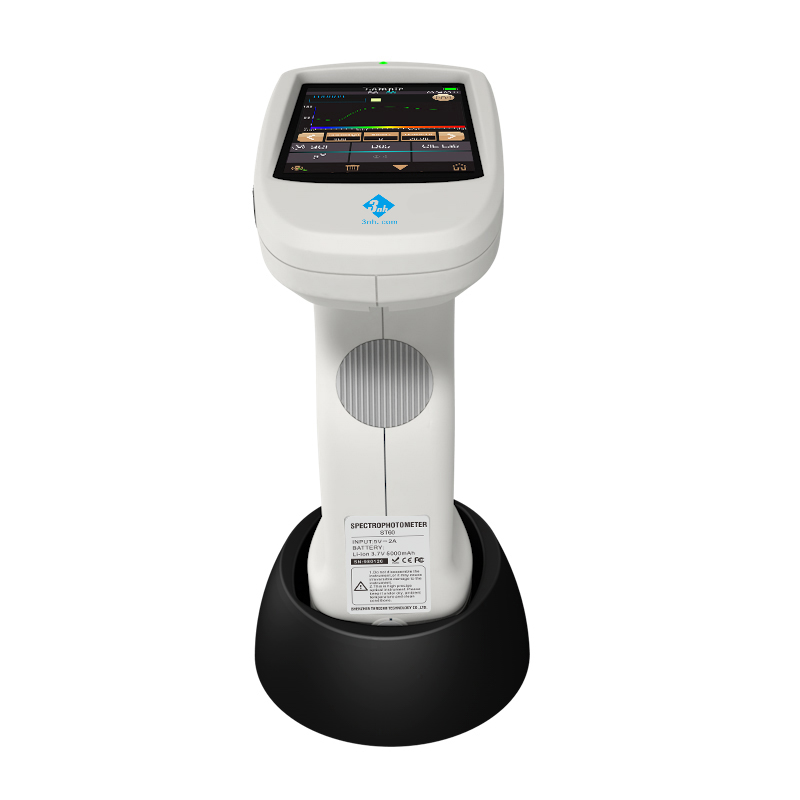

7. Place the base safely to ensure that the whiteboard is not dirty.

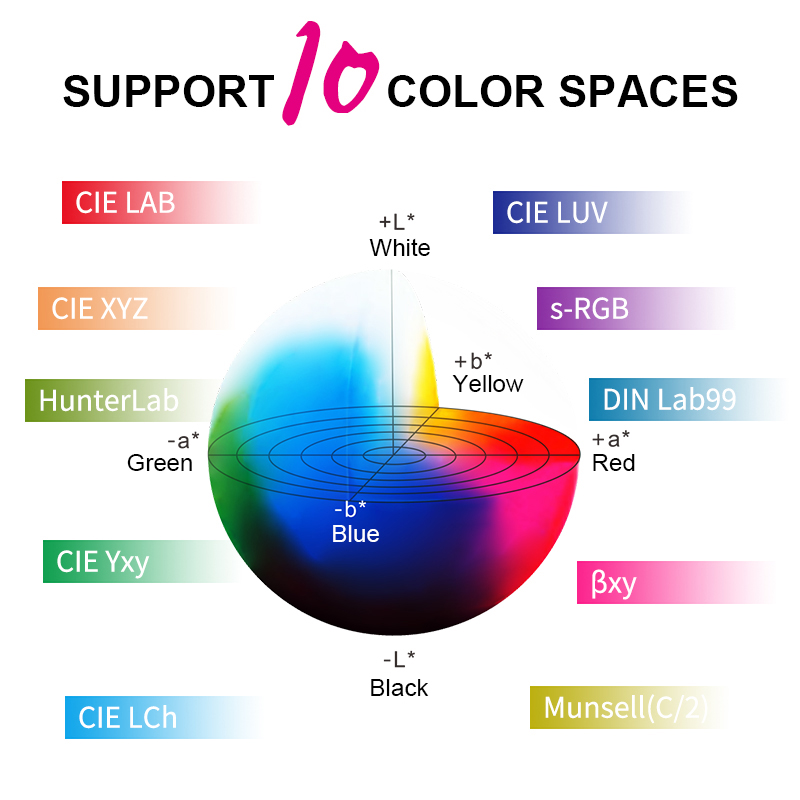

8. Offer 10 kinds of color measurement space and 41 kinds of observation light source

Offer CIE LAB, XYZ, Yxy, LCh, CIE LUV, S-RGB, HunterLab, βxy, DIN Lab99, Munsell(C/2) color spaces, and D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), B, U35, NBF, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5. It also can be a customized light source (A total of 41 kinds of the light source, Partially realize through the PC software /APP software), and can meet special measurement requirements under different measurement conditions.

9. Many color indexes

Spectrophotometer ST60 not only provides the commonly used color measurement but also provides spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), Metamerism index of Mt, Staining Fastness, Color Fastness, Color Strength, Opacity, 8-degree gloss, 555 tone classification, Carbon (My, dM), color density CMYK(A, T, E, M), Tint, Munsel chroma index (part of the function is realized by PC software).

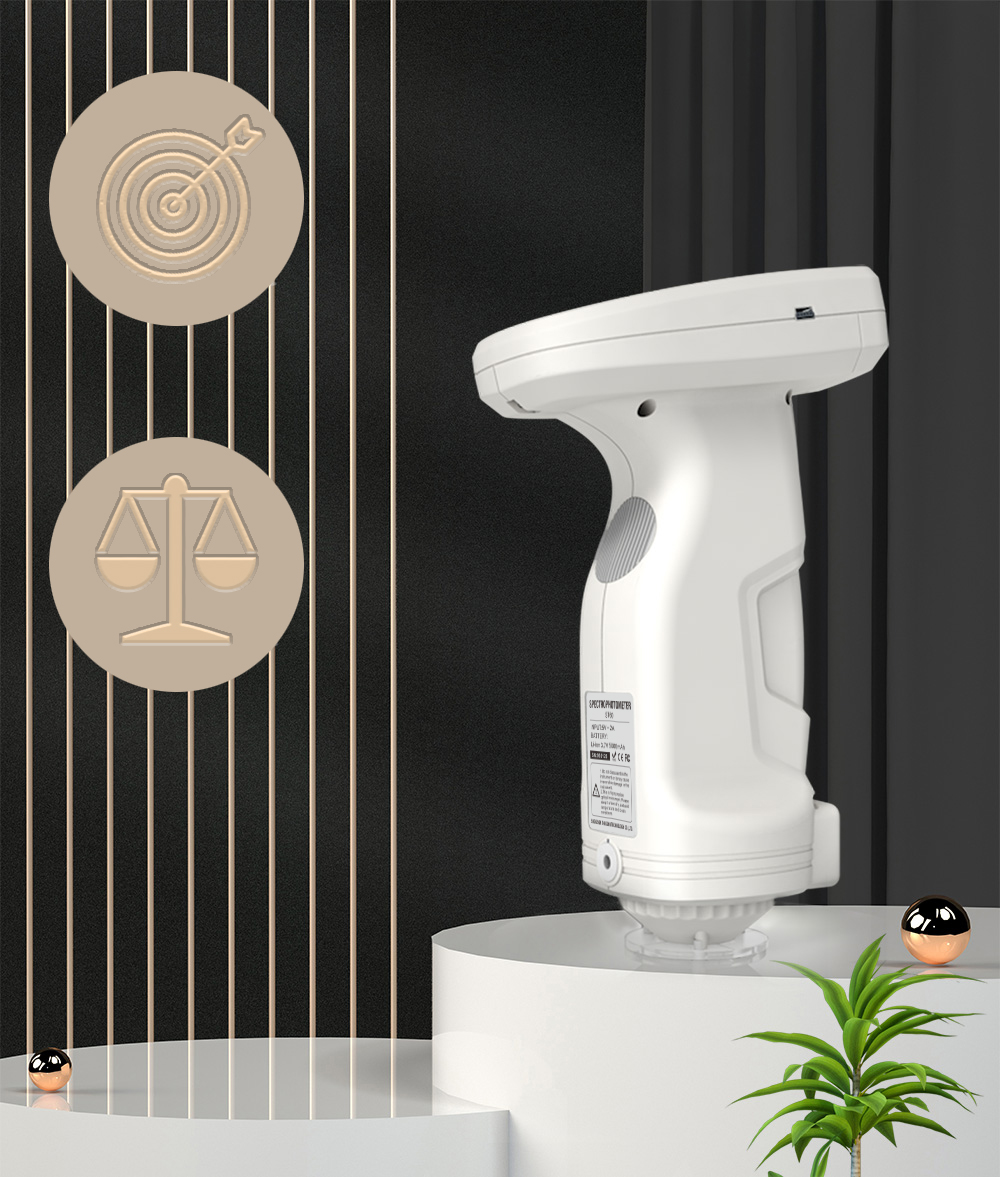

10. Excellent instrument errors and repeatability

Ensure the consistency of measurement data of multiple pieces of equipment, to be used for color matching and accurate color transfer.

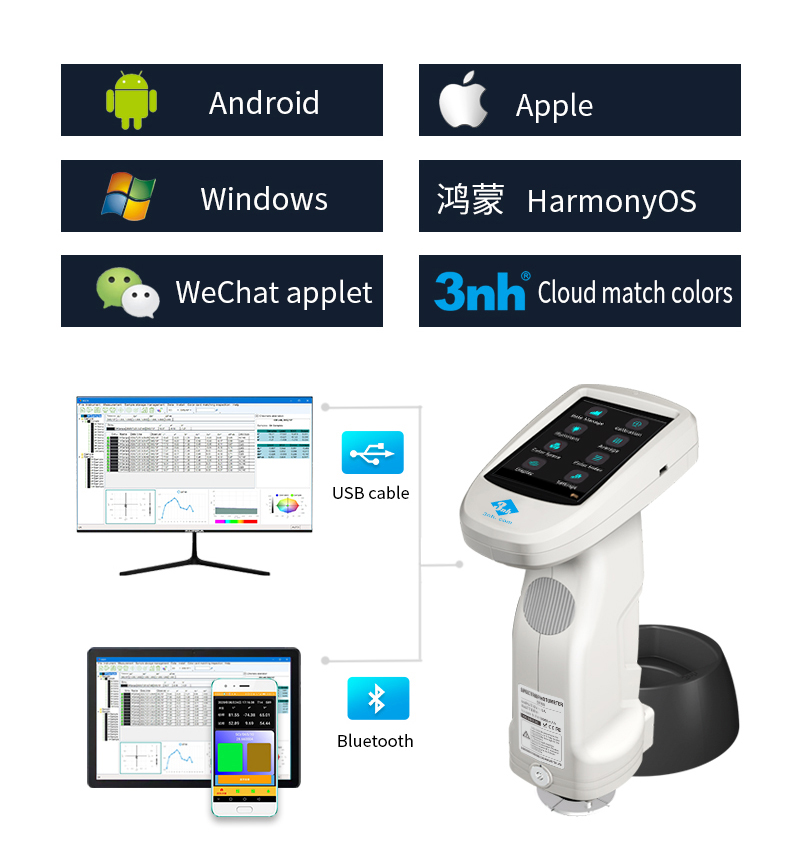

11. Support Huawei Harmony OS, Android, IOS, Wechat applets, Windows programs



Model ST60 spectrophotometer
Optical Geometry D/8 (diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Adopt 3nh TS series core technology, 4 measuring apertures for accurate color analysis and transmission in laboratory
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensor Silicon photodiode array (double row 26 groups)
Wavelength Range 360~700nm
Wavelength Interval 10nm
Measured Reflectance Range 0-200%
Measuring Aperture 4 apertures: MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm;
Specular Component SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index Spectral reflectance,WI(ASTM E313,CIE/ISO, AATCC, Hunter, TaubeBergerStensby),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,555 tone classification, Carbon (My,dM), color density CMYK(A,T,E,M), Tint, Munsel chroma index (part of the function is realized by PC software)
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, able to customized light source (total 41 kinds of light source, Partially realize through the PC software /APP software)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color simulation, Color Offset
Measuring Time About 1.5s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Display Resolution 0.01
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating,stabilizer cross position
Dimension L*W*H=129X76X217mm
Weight Approx 600g
Battery Li-ion battery, 8800 measurements within 8 hours
Illuminant Life Span 10 years, more than 1.5 million times measurements
Displayed Data 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth ® 5.0
Data Storage Standard 1000 Pcs, Sample 30000 Pcs, APP/PC mass storage
Software Support Android,IOS, Windows,Harmony OS, Wechat applets
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional Accessory Micro Printer, Powder Test Box
Notes The specifications are subject to change without notice.
