Colorreader CR8

The CR8 (Professional) is a portable spectrophotometer . It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, and an imported whiteboard, and the repeatability ΔE*ab can be easily controlled within 0.04. CR8's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices. The CR8 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth. It greatly expands the application space of the colorimeter and makes the traditional colorimeter glow with a different application charm.

Send Inquiry Live Chat

Product Detail
Features
Technical specification
After-sales services

CR8 realizes the two-in-one spectrophotometer and spectrocolorreader, are easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high-cost performance.

1. Adopt full-band balanced LED light source

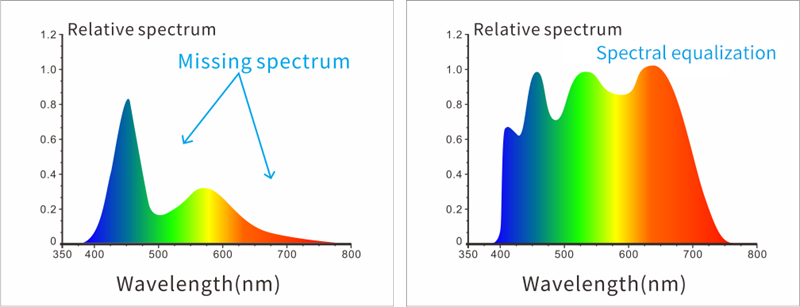

The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum of white LEDs in a specific band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.

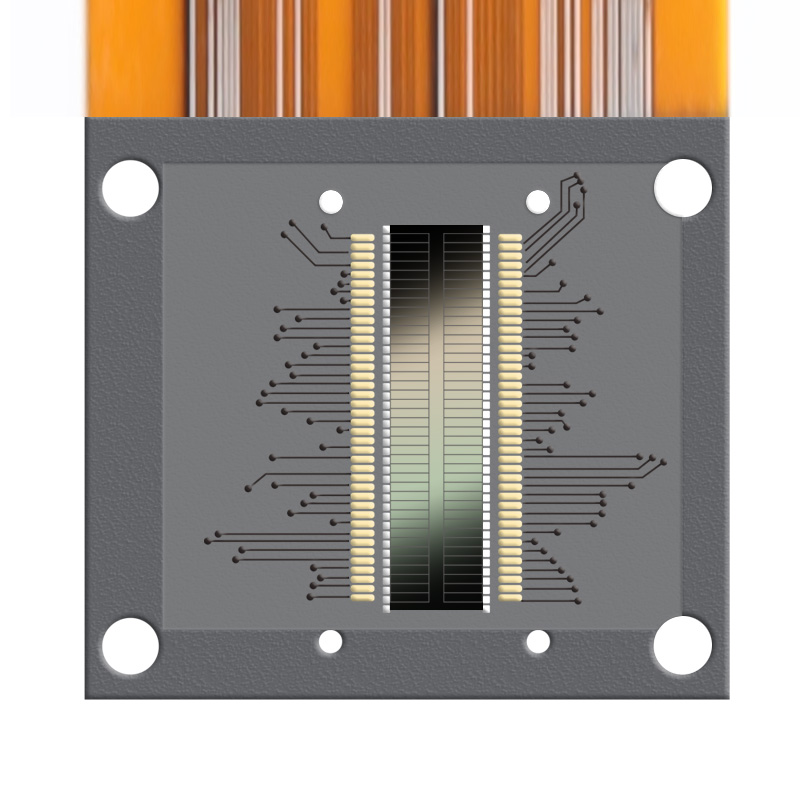

2. Silicon photodiode array (double 32 arrays) sensor

The dual-32 array sensor with a larger area has strong light but not saturation, higher sensitivity of low light, and a wider spectral response range, which ensures the measurement speed, accuracy, stability, and consistency of the instrument.
Mastering the core technology and fully compatible with international standards.

3. Grating Spectrophotometric technology

Using grating spectrophotometric technology has higher resolution and makes color measurement more accurate.

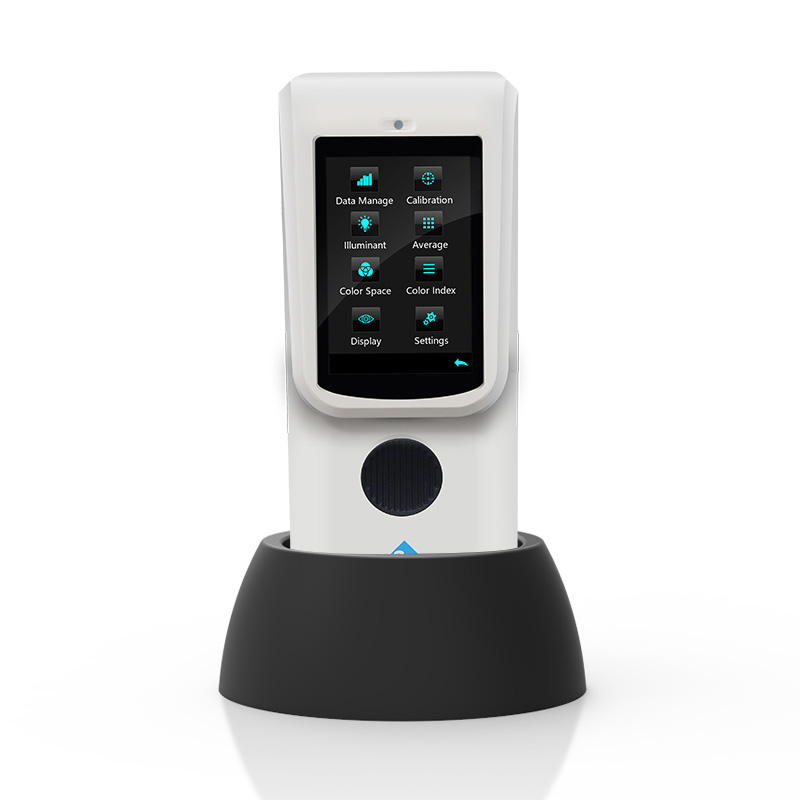

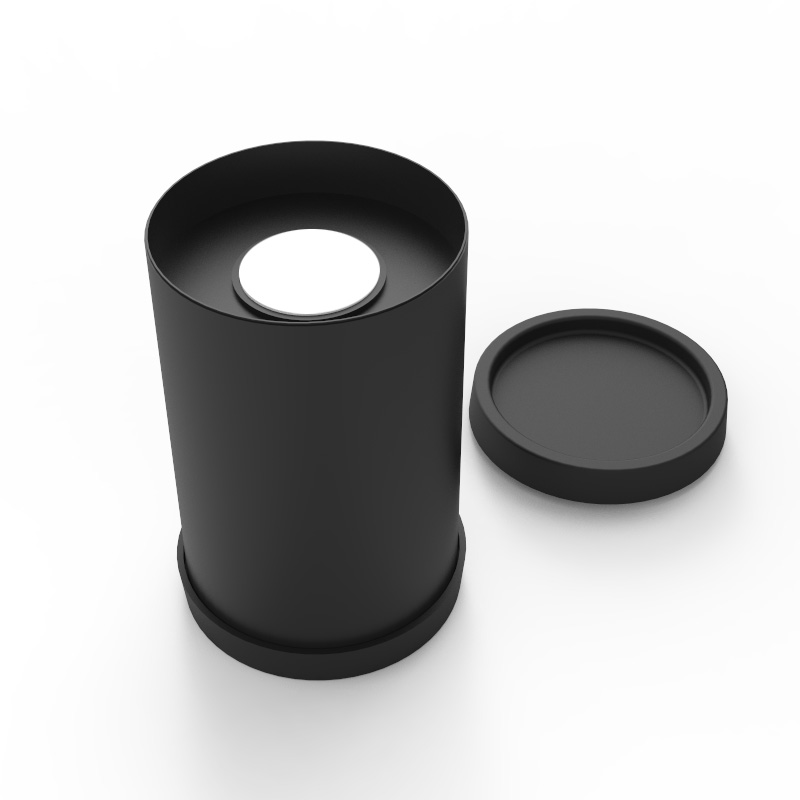

4. Place the base safely to ensure that the whiteboard is not dirty.

5. Professional whiteboard, a promise that will never change color forever.

6. Fast charging

Special fast charging method, a low-voltage reminder to charge or use of off-hours to charge, to ensure the capacity and life of the battery (note: frequently repeated charging of the battery is more harmful).

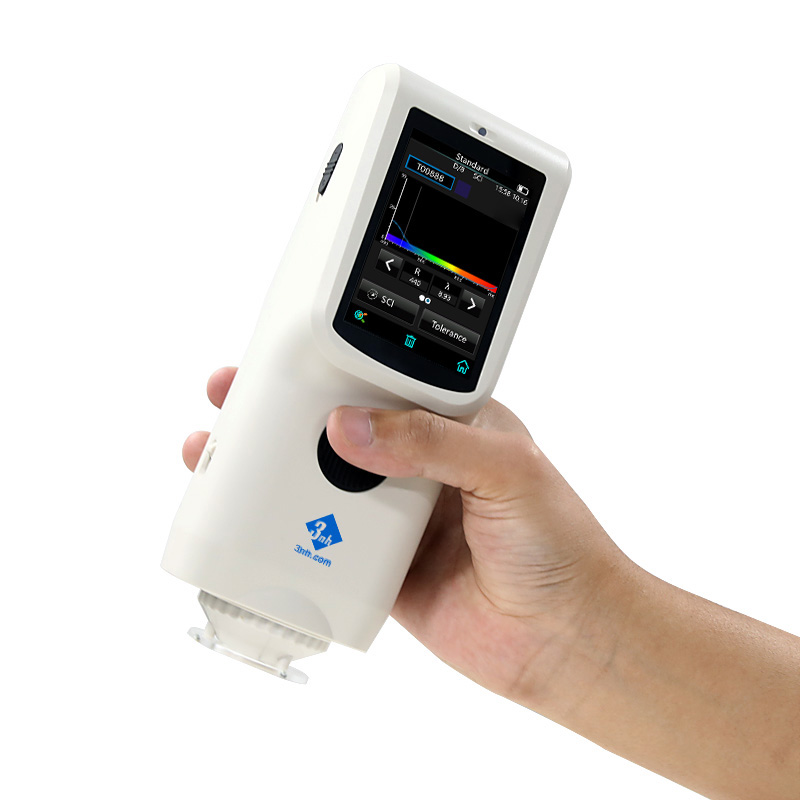

7. Novel and fashionable appearance design based on ergonomics

The position of the hand grip and the measurement button is carefully designed to meet different gripping habits. The smooth and fine surface is derived from the art of high-precision appearance processing.

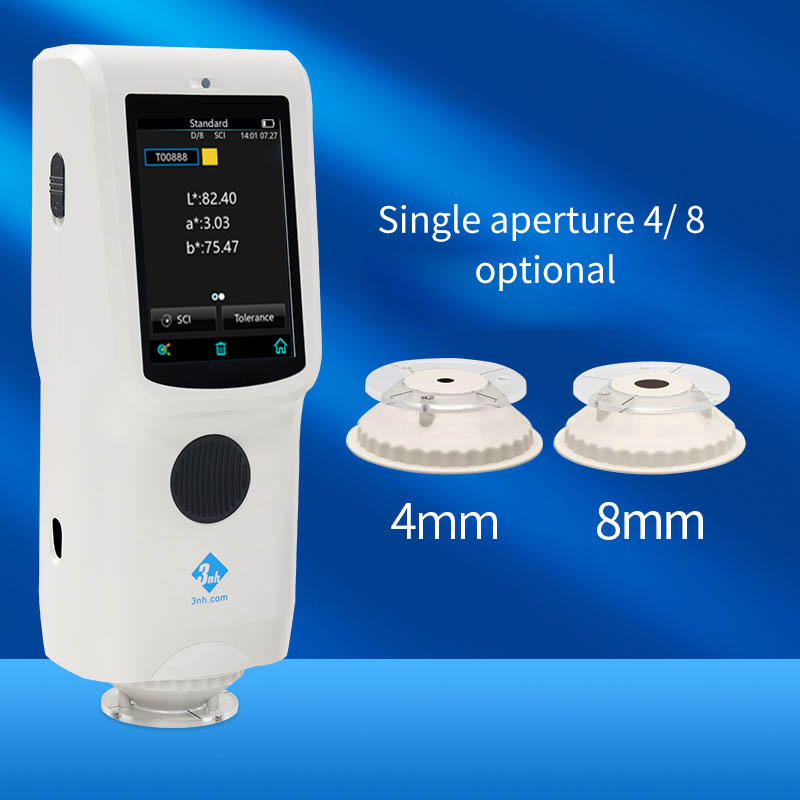

8. Customize a single measuring aperture to accurately meet the needs of sample measurement

Spectrocolorreader CR8 (Professional) can choose an Ø8mm or Ø4mm platform aperture according to your needs to meet your sample measurement needs.

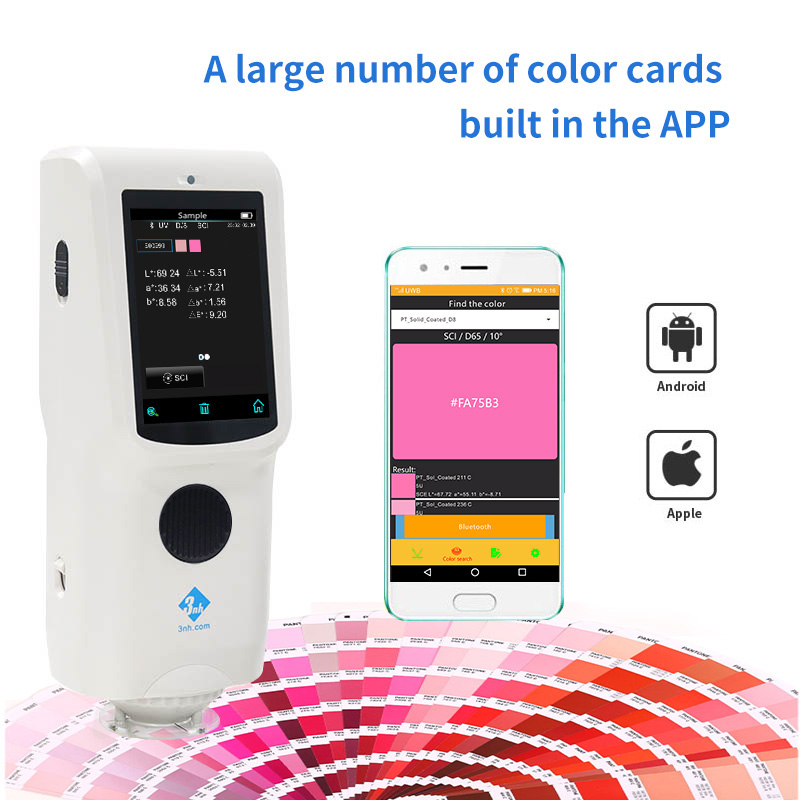

9. Massive color card database

The instrument stores 500 standard and 10,000 samples, and the APP synchronously stores a large amount of data, which can quickly check color data, analyze and compare.
Use the App to build your private color database in the cloud. You don’t need to carry a heavy color card. You can use CR8 colorreader to find the closest color in multiple color cards anytime and anywhere.

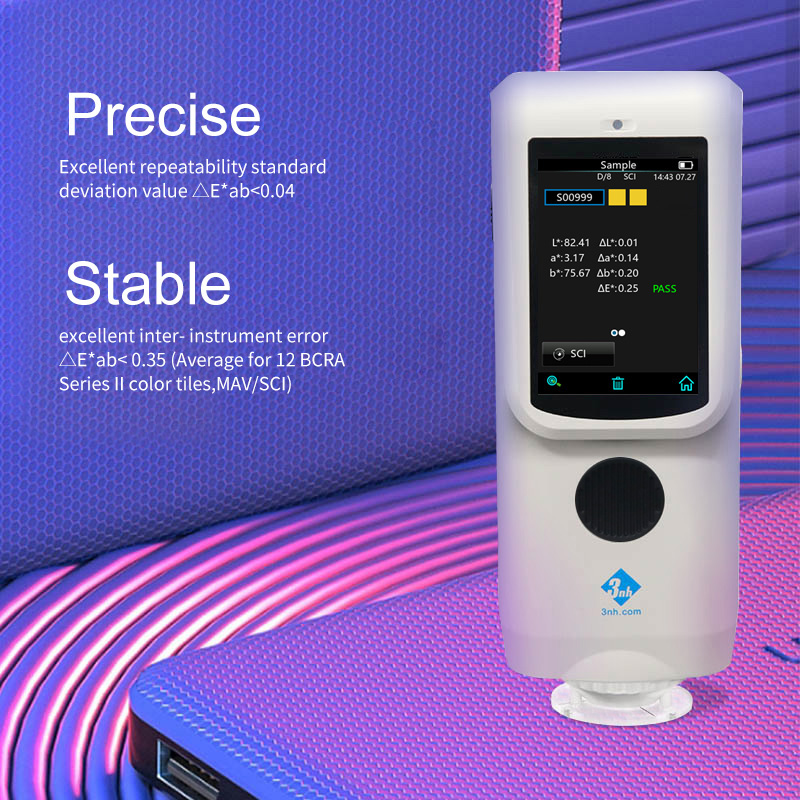

10. Excellent inter-instrument error and repeatability to ensure the consistency of measurement data of multiple types of equipment.

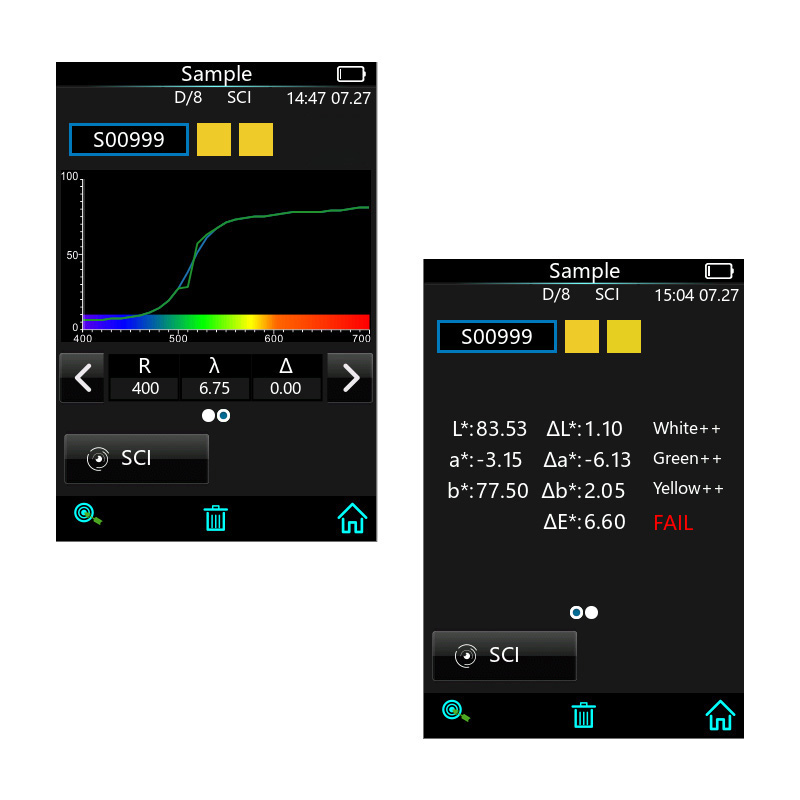

11. Diversified data display

SpectrocolorreaderCR8 (Professional)can intuitively display reflectance (reflectance at 3 specific wavelengths specified by the user), sample chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset, and other data. It is convenient to view and also greatly improves the user’s work efficiency.

12. Use whatever you want

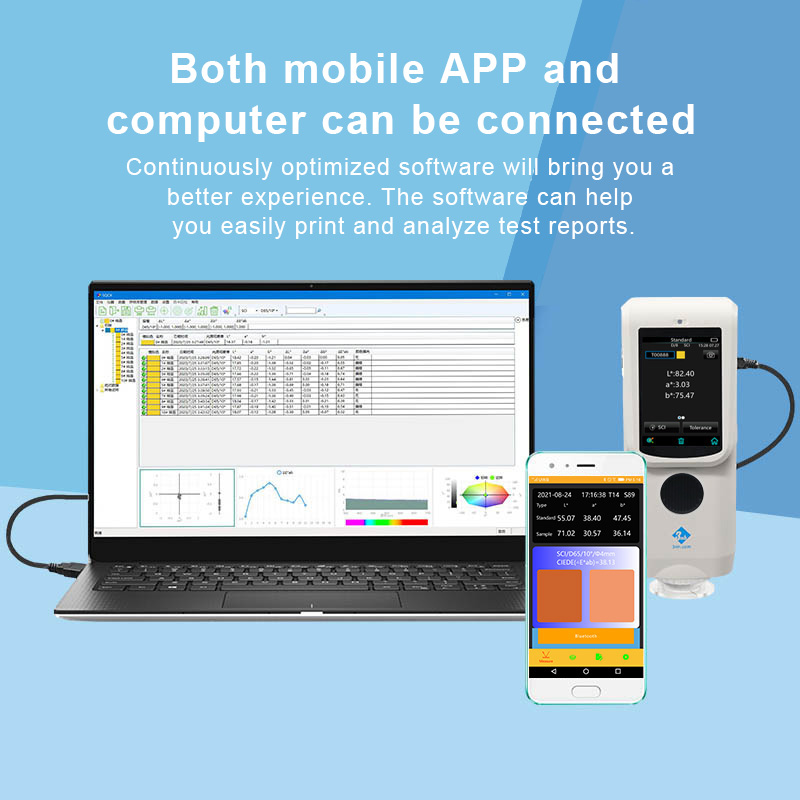

It can be used alone, 3.5-inch true color screen can check data at any time, cooperate with SQCX quality management software to facilitate quality monitoring and color data management, with APP to synchronize data at any time, and more application scenarios are waiting for you to discover.

Specification

Model	CR8 (Professional)
Optical geometry	D/8 (diffuse illumination, 8° direction reception)
	SCI measurement
	Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics	Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size	Φ40mm
Light source	Combined full-spectrum LED light source
Spectroscopic method	Planar grating
Sensor	Silicon photodiode arrays (dual row 32 groups)
Wavelength range	400~700nm
Wavelength interval	10nm
Semiband Bandwidth	10nm
Measurement range	L:0~120
Measurement range	Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), APP can realize the full-band wavelength display
Measurement aperture	Single aperture: Φ8mm ( Φ4mm optional)
Focusing method	Fixed Focus
Specular component	SCI
Color space	CIE LAB,XYZ,Yxy,LCh
Color difference formula	ΔEab,ΔE00
Other colorimetric indexs	Multiple colorimetric indexs are realized through APP
		Observer angle	10°
		Illuminant	D65,A,F2(CWF)
		Displayed data	Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy	0.01
Measurement time	Approx. 1.5s
Repeatability	Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error	MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)
Measurement method	Single measurement, average measurement (2~99 times)
Locating method	Stabilizer locating
Size	LxWxH=81X71X214mm
Weight	About 460g
Battery power	Lithium battery, 6000 times in 8 hours
Illuminant life span	5 years, more than 3 million times measurements
Display	TFT true color 3.5inch, capacitive touch screen
Data port	USB, Bluetooth® 5.0
Data storage	500 standard samples, 1,0000 samples , APP mass storage
Language	Simplified Chinese, English, Traditional Chinese
Operating temperature range	0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range	-20~50℃, 0~85%RH (no condensation)
Standard Accessories	Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)
Optional Accessories	USB micro printer, powder test box, Bluetooth micro printer,holder base
Notes.	Technical parameters are for reference only, subject to the actual sales of products
