CRY602 Mouth simulator

CRY602 Mouth simulator

CRY602 Mouth Simulator is used to simulate the sound source of the sound field near the mouth of a person, and is suitable for the acoustic parameters testing of telephone transmitters and microphones used in voice communication. The frequency response (FR) curve and other properties comply with the requirements of IEEE 269, 661 and the requirement for "mouth reference point" for transmitting acoustic signals in ITU-T P51. It is a standard sound source for acoustic measurement.

Technical specification：

Min. continuous output SPL	200 Hz - 10 kHz: 110 dB (@ 25mm MRP) 100 Hz - 10 kHz: 100 dB (@ 25mm MRP)

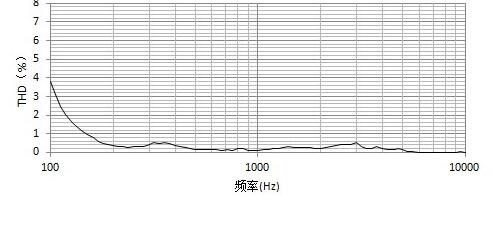

Distortion	200 Hz - 10 kHz: ＜1.5%, generally ＜1% (94 dB SPL @ 25 mm MRP)

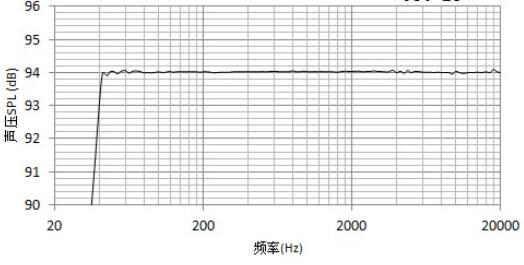

Frequency response curve	Output sound pressure after compensation: 94 dB ±1 dB (100 Hz - 10 kHz)
Impedance	4Ω
Max. continuous power	10W
Max. instantaneous power	50W（1s）
Sound aperture	Ø20mm
Lip ring	O.D.: Ø 51 mm Height: 25 mm
Diameter	Ø100mm
Height	88mm
Net weight	1.3kg
Interface	BNC

Send Inquiry Live Chat

Product Detail
Features
After-sales services

CRY600 series mouth simulator is used to simulate the sound source of the sound field near the mouth of the human. It is suitable for the test of the acoustic parameters of telephone microphones and microphones used in voice communication.

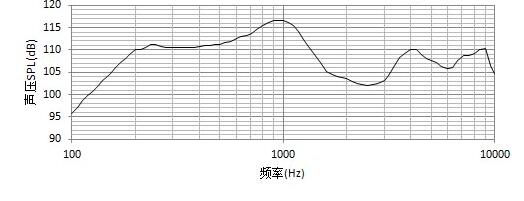

Drive voltage = 1 V (0.25 W); frequency response curve at 25 mm (MRP)
