IT8400 High Performance DC Electronic Load

IT8400 high-performance DC electronic load has two voltage levels, 600V and 1200V. It supports the master-slave connection in parallel with power from 6 kW to 600 kW and is capable of fast double power loading. It has three current readback ranges with a resolution of up to 40uA. IT8400 has a faster loop response and current rising and falling speed. It supports up to 8 working modes. It also has a dynamic mode, List, OCP, OPP test, automatic test, and battery test functions. IT8400 has built-in CAN, LAN, GPIB, USB, RS232, and analog interfaces, suitable for remote control and system building. In addition, the full protection function makes it well matched with the test of the fuel cell, power battery discharge, DC charging pile, BOC, power electronics, solar, automotive high-voltage components, DC-DC, motor, and so on.

Send Inquiry Live Chat

Product Detail
Technical specifications
Functions and Advantages

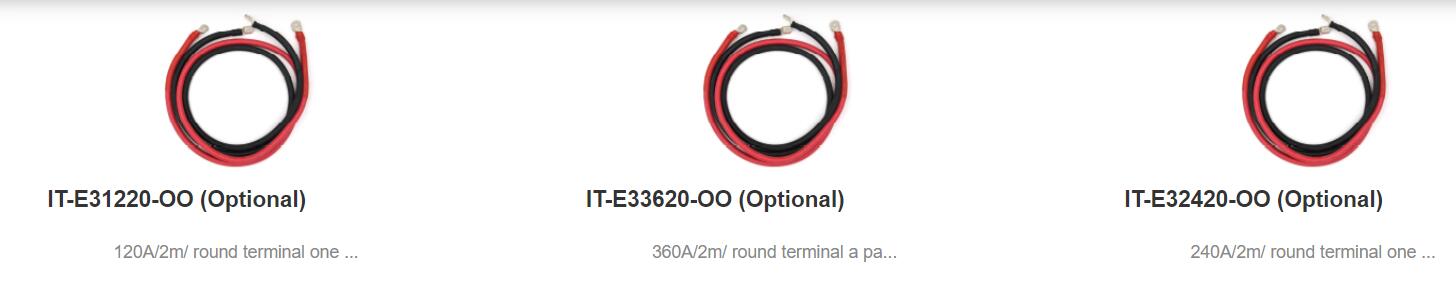

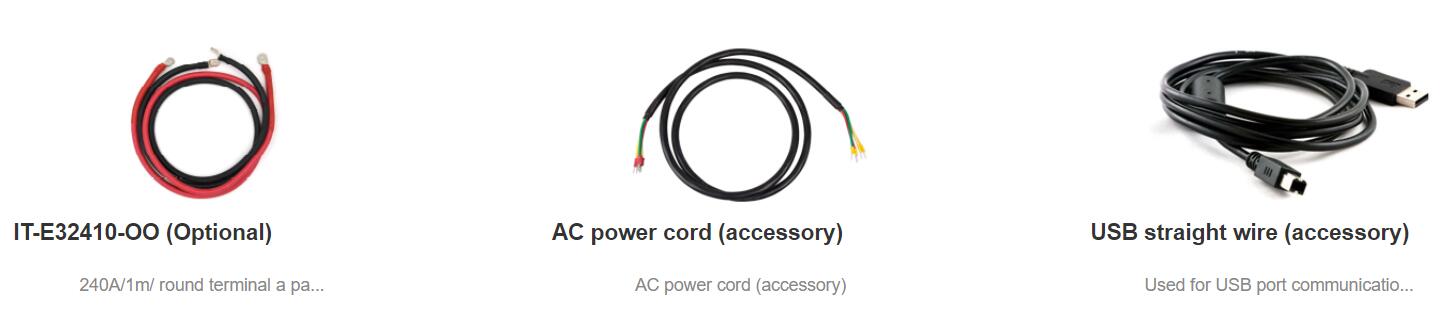

Options & Accessories
After-sales services

♦ Max.Voltage: 1200V
♦ Current range: 1.5A~15,000 A
♦ Power extended to 600 kW through the master-slave connection in parallel
♦ High-precision three current measurement ranges with resolution up to 40uA
♦ Fast double power loading capability (<3 s)
♦ 25kHz fast dynamic mode, current rising and falling time is adjustable
♦ Provide 8 working modes: CC, CV, CR, CP, CC+CV, CV+CR,CR+CC, CP+CC
♦ 1 kHz continuous sampling rate
♦ List programming
♦ The battery discharge function is used to test energy storage devices such as batteries and supercapacitors
♦ CV loop speed is adjustable to match different power supplies
♦ 500 kHz voltage and current sampling rate
♦ Time measurement, OCP/OPP test short circuit simulation, automatic test
♦ Soft start and soft shutdown to prevent voltage fluctuations during on/off
♦ I-monitor function
♦ Full protection: OVP, UVP, OCP, OPP, OTP, current oscillation protection, current limit, power limit, reverse alarm, etc.
♦ Power-off retention memory function, recording up to 100 groups of data wyndham cancellation policy timeshare
♦ Independent control, easy to maintain and install.
♦ Built-in standard LAN, USB, RS232, GPIB, CAN and analog, IO interface
♦ LabVIEW driver and SCPI protocol

Model	Voltage	Current	Power	Resolution	Accuracy	Interface
IT8406-600-150	600 V	150 A	6 kW	1 mV/ 0.1 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8406-1200-75	1200 V	75 A	6 kW	10mV/ 40uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8412-600-300	600 V	300 A	12 kW	1 mV/ 0.2 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8412-1200-150	1200 V	150 A	12 kW	10mV/ 80uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8418-600-450	600 V	450 A	18 kW	1 mV/ 0.3 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8418-1200-225	1200 V	225 A	18 kW	10mV/ 120uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8424-600-600	600 V	600 A	24 kW	1 mV/ 0.4 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8424-1200-300	1200 V	300 A	24 kW	10mV/ 160uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8430-600-750	600 V	750 A	30 kW	1 mV/ 0.5 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8430-1200-375	1200 V	375 A	30 kW	10mV/ 200uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8436-600-900	600 V	900 A	36 kW	1 mV/ 0.6 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8436-1200-450	1200 V	450 A	36 kW	10mV/ 240uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8442-600-1050	600 V	1050 A	42 kW	1 mV/ 0.7 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8442-1200-525	1200 V	525 A	42 kW	10mV/ 280uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8448-600-1200	600 V	1200 A	48 kW	1 mV/ 0.8 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8448-1200-600	1200 V	600 A	48 kW	10mV/ 320uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8454-600-1350	600 V	1350 A	54 kW	1 mV/ 0.9 mA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface
IT8454-1200-675	1200 V	675 A	54 kW	10mV/ 360uA	±(0.05%+0.05%FS)/ ±(0.05%+0.1%FS)	Built-in LAN/USB/RS232/GPIB/CAN/External analog control interface

Fast loading with double power

The input voltage of IT8400 DC electronic load can reach 1200V. It has a fast double power loading capacity and is available for all models from 6kW to 600kW. You do not need to select the model according to the maximum power during the actual test, which can greatly save you costs. The input over power and loading time are relevant to the temperature of the electronic load. For example: below 30℃, IT8400 supports double power loading within 3 seconds. This makes it suitable for instantaneous high-power discharge tests of motors and batteries. For example, simulating the starting of a DC motor, simulating the transient overload characteristics of some power supplies, or instantaneously discharging a high-power battery or fuel cell.

Higher current rise and fall speed and dynamic speed

Dynamic testing is one of the necessary test items for power supplies. The dynamic mode of IT8400 can be used to measure it. Set the current level, time, rising and falling slope, and repeat times, and then you can check if the power supply still works stably when the load current is changed stepwise. IT8400 supports the programmable dynamic loading mode with 25kHz. The minimum current rise and fall time is 15us. When the loading current changes continuously, the internal monitoring and circuit can minimize the current waveform distortion. So it is well used for transient response tests of switching power supply and dynamic discharge tests of the battery.

3 Current measurement range

All models of the IT8400 series have 3 current measurement ranges. For example, the 1200V, 6kW model, its current can reach 1.5A. In addition, the high resolution (40uA at most ) and high accuracy (1.5mA at most )
enable it to be widely used in the tests such as solar, power semiconductor devices, automotive electronics, and so on.
