LS136 UV Energy Meter

LS136 UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and intensity in high pressure mercury lamp, halogen lamp and other light sources. It can be used to measure UV intensity, energy and temperature in a variety of UV curing machine, UV coating machine, exposure machine, dryer, printing machine and other equipment. The UV energy meter can be measured in narrow spaces with 7.6mm thick. Equipped with a high temperature protective cover, still operate in high temperature environment.

LS136 UV energy meter is specialized for high pressure mercury lamp halogen lamp and other light source, if you need to measure UVLED light source, please choose LS137 UV Energy Meter.

  • Product Detail
  • Parameter
  • Feature

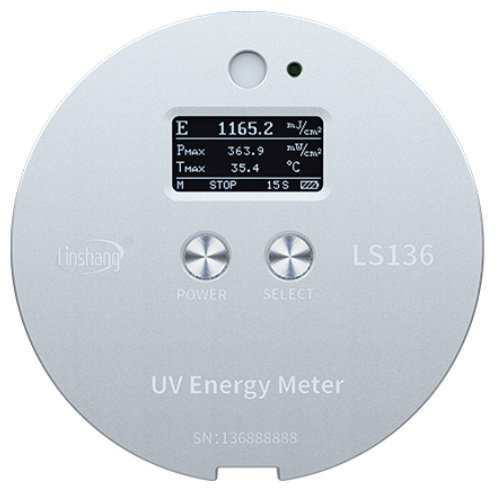

LS136 UV Energy Meter

Suitable for high pressure mercury lamp

For high pressure mercury lamp, halogen lamp
7.6mm thickness and 102mm diameter, simple operation
Long-term for high temperature resistance

Parameter LS136 UV Meter
Spectral range 315nm-400nm, λp = 365nm
Power measuring range 0-2000mW/cm²
Power resolution 0.1mW/cm²
Energy measuring range 0-999999mJ/cm²
Measuring accuracy
(H is the standard value)
H<5mW/cm²:±0.5mW/cm² H>=5mW/cm²:±10%H, ±5% (typical)
Sampling speed 2048 times/second
Recording period 32 min
Power supply Rechargeable lithium battery 3.7V@400mAh
Display 128X64 Dot matrix OLED
Dimension Diameter 102mm* thickness 7.6mm
Weight 136g

Energy, power and temperature are measured simultaneously

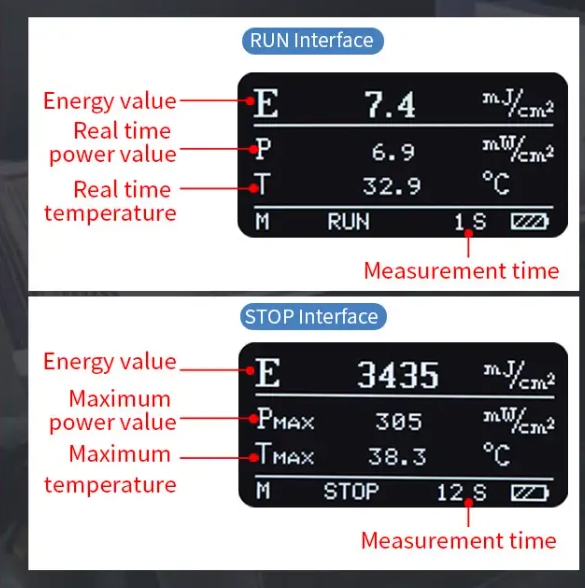

Real-time power value and real-time temperature value can be dynamically displayed during measurement.The energy accumulation value, maximum power value and maximum temperature value are displayed after the measurement.

Suitable for high pressure mercury lamp and halogen lamp

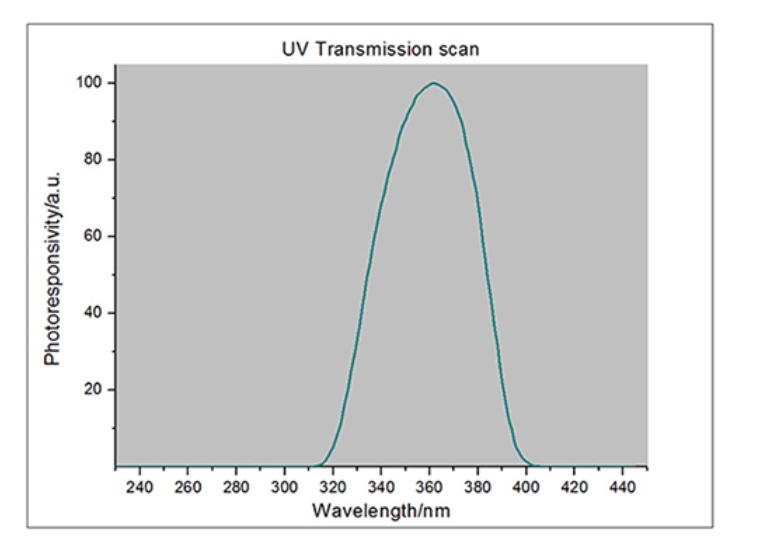

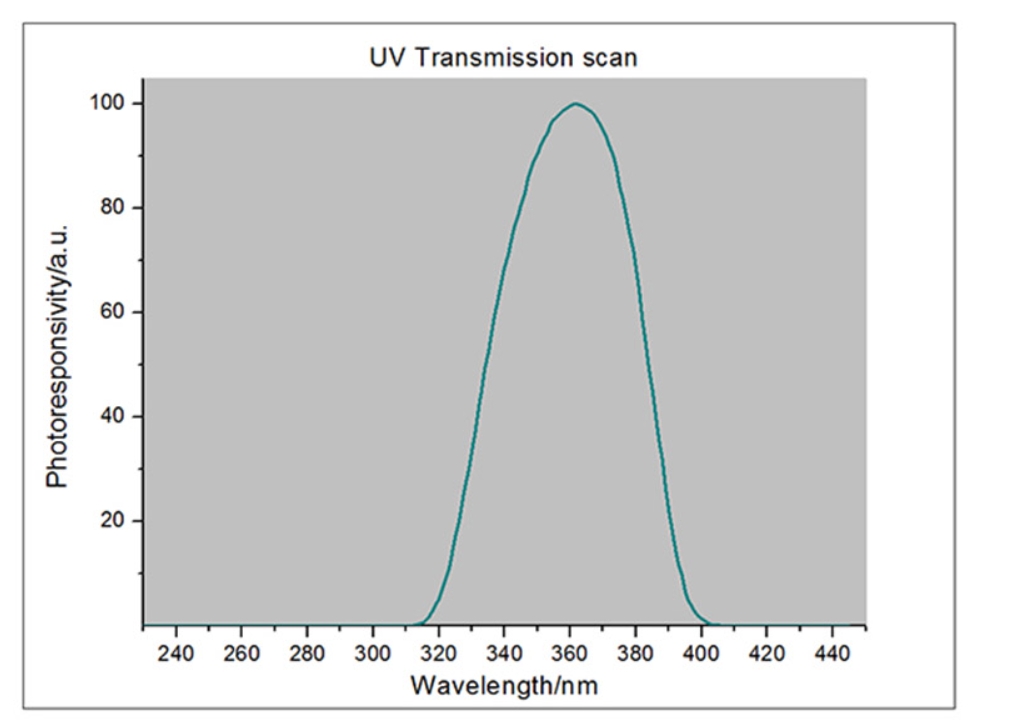

The content spectral range is 315nm-400nm, and the peak wavelength is 365nm. Professional high pressure mercury lamp, halogen lamp and other light source used for the uv energy measurement.

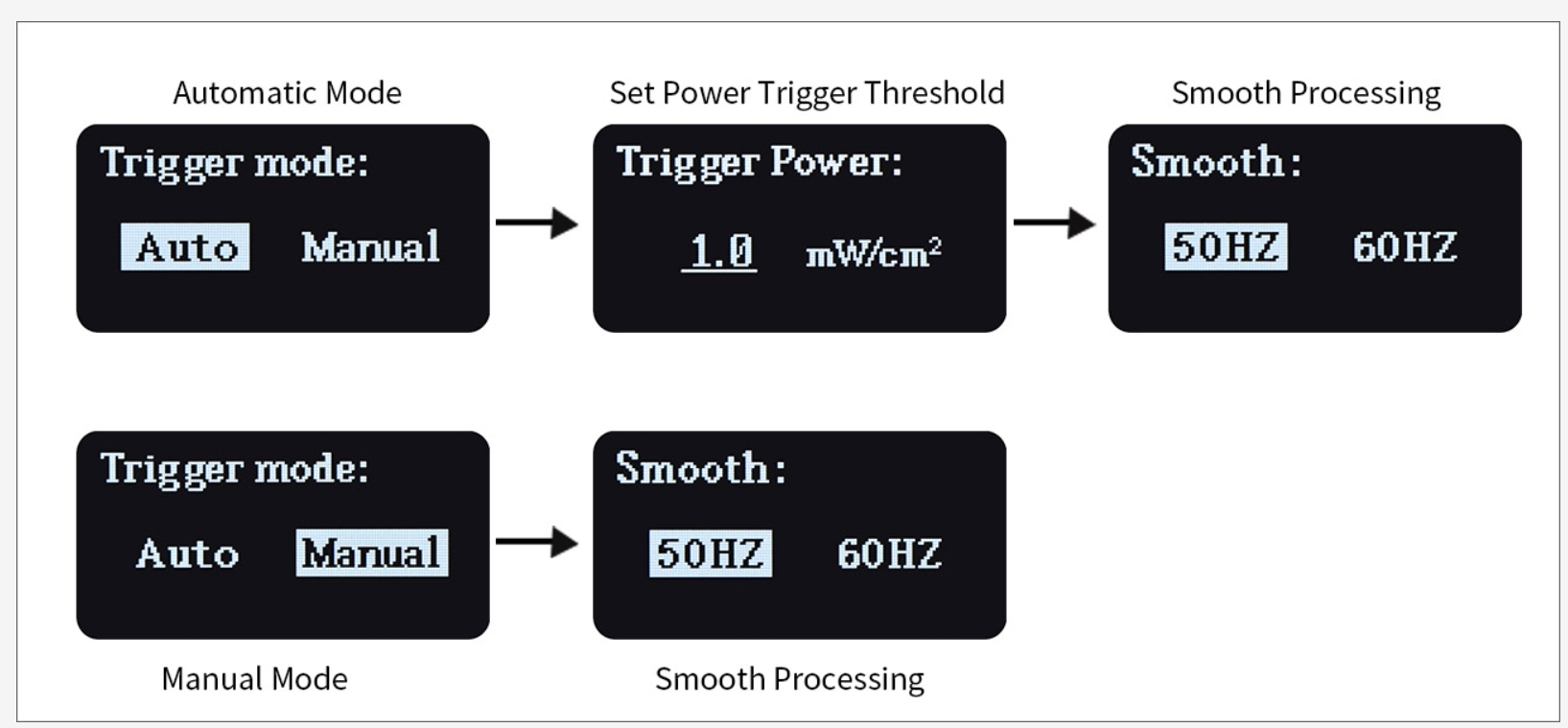

Two measurement modes available

In automatic mode, trigger and end measurement automatically, measure curing time and energy value accurately; In manual mode, energy value of multiple curing light sources can be measured.

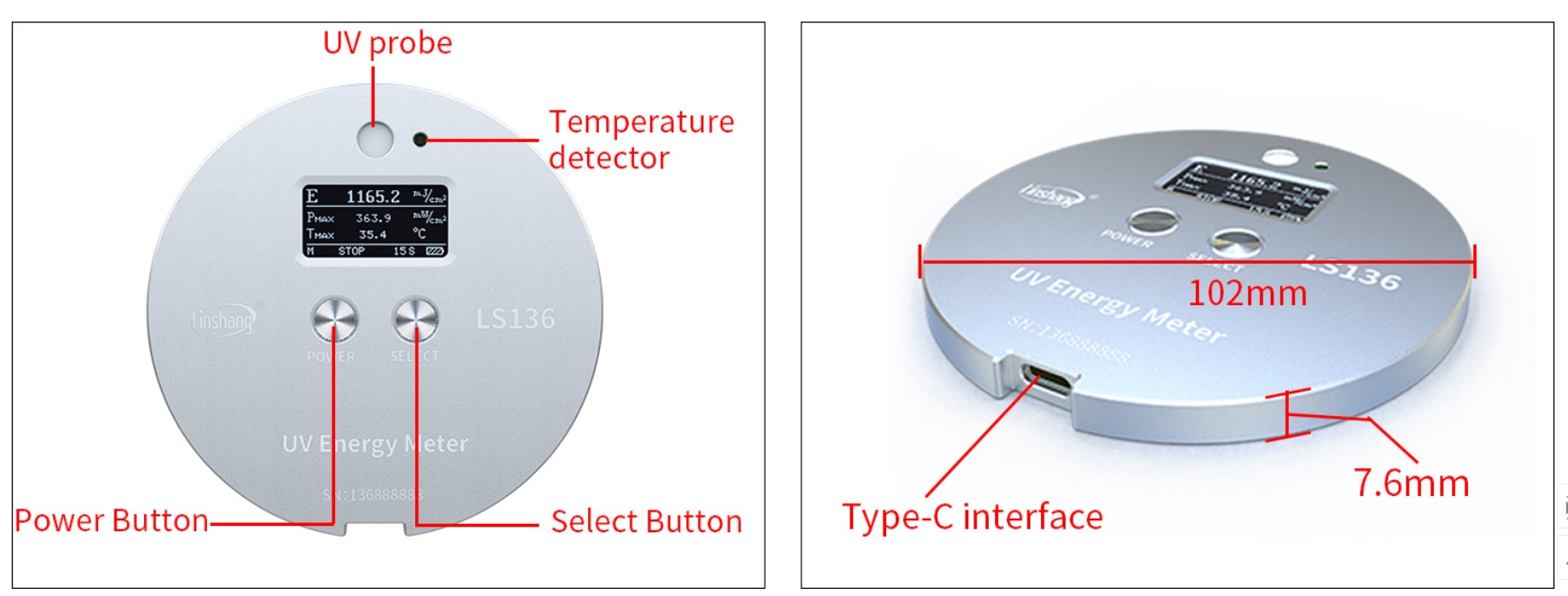

Portable and compact

With the thickness of 7.6mm and 102mm of diameter, LS136 is suitable for narrow measuring space.

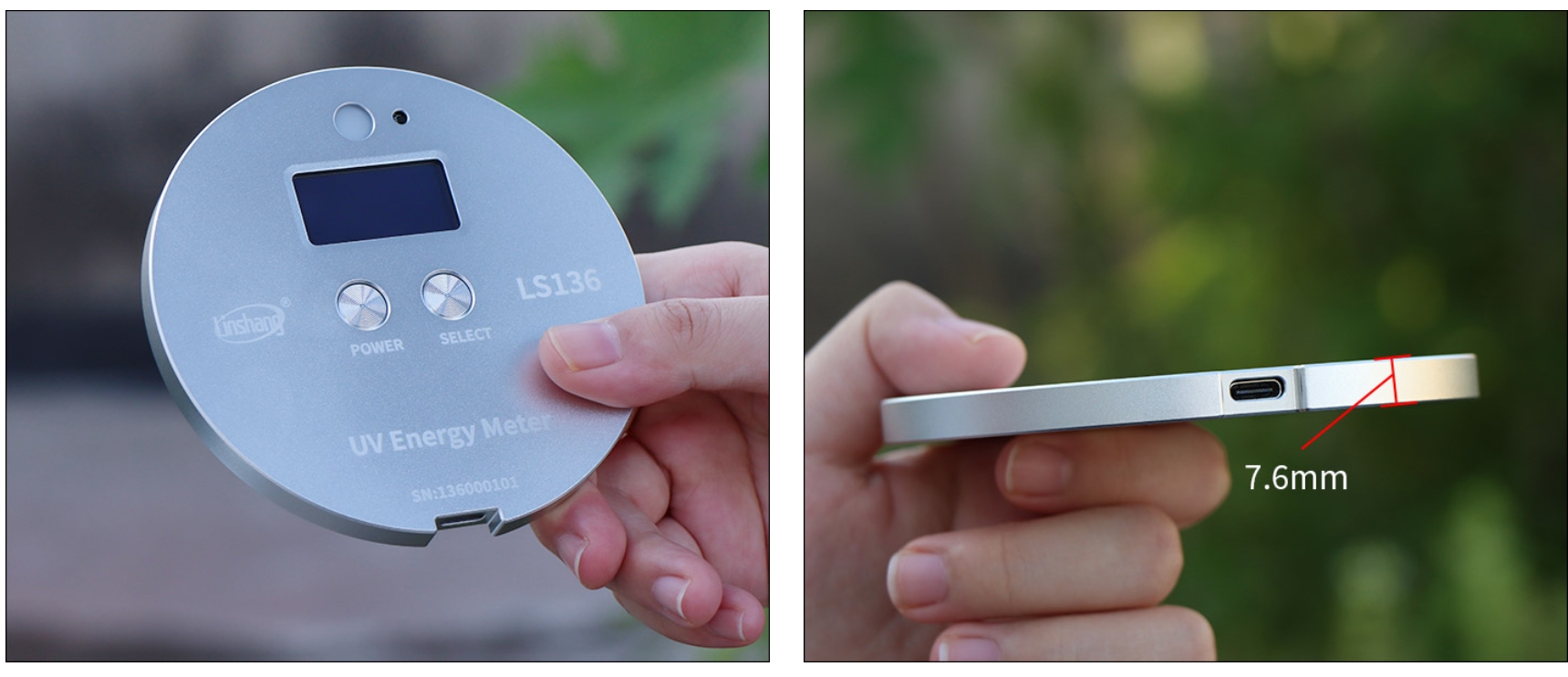

ls136 real picture
7.6mm thickness

Portable and compact

With the thickness of 7.6mm and 102mm of diameter, LS136 is suitable for narrow measuring space.

Portable and compact

With the thickness of 7.6mm and 102mm of diameter, LS136 is suitable for narrow measuring space.

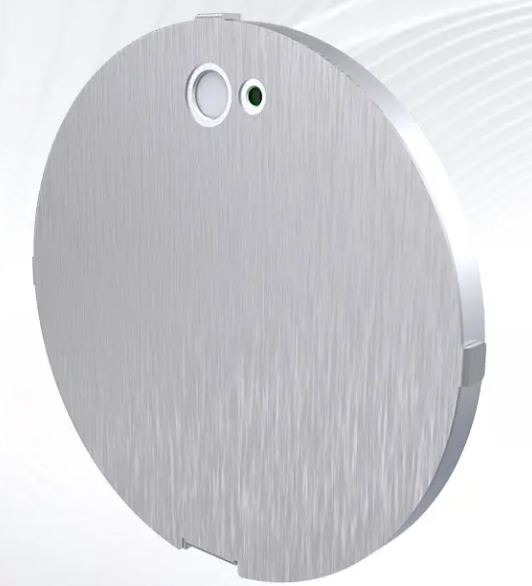

High temperature protection cover

With high temperature protection cover which is factory-equipped, long-term operate under high temperature resistance.
