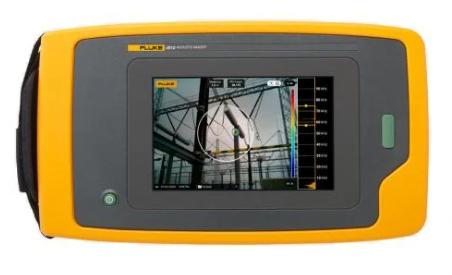

Fluke ii910 Precision Acoustic Imager

Specifications: Fluke ii910 Precision Acoustic Imager

Sensors
Frequency band 2 kHz to 100 kHz
Detection range 0.5 to > 120 meters (1.6 to > 393 feet)*
Field of View 63 ° ± 5 °
Nominal frame rate 25 FPS
*Depending on ambient conditions
Built-in digital camera (visible light)
Field of View (FOV) 63 ° ± 5 °
Focus Fixed lens
Zoom 3 x Digital Zoom
Resolution 5 MP

  • Product Detail
  • Technical specifications
  • Configuration

The Fluke ii900/ii910 is an Acoustic Imager (the Product or Imager) that detects and locates an acoustic signature. These signatures can indicate leaks in compressed air, compressed gas, and vacuum systems.

In addition, the ii910 detects electrical discharges as well as leaks. These electrical discharges include partial discharges such as corona, surface tracking, and arcing.

The ii910 also identifies and locates potential mechanical issues. The Imager has an acoustic sensor array that aligns a sound source heatmap with the image. The visible-light camera provides a live-view image of the inspection area. Capture and save still image files and video files from the inspection for documentation and reports.

A rechargeable battery powers the Imager. The Imager includes an external battery charger with a power adapter and country-specific cables.

The Imager has a USB-C port that connects to a PC for file download and firmware updates.

Specifications: Fluke ii910 Precision Acoustic Imager

Sensors
Frequency band 2 kHz to 100 kHz
Detection range 0.5 to > 120 meters (1.6 to > 393 feet)*
Field of View 63 ° ± 5 °
Nominal frame rate 25 FPS
*Depending on ambient conditions
Built-in digital camera (visible light)
Field of View (FOV) 63 ° ± 5 °
Focus Fixed lens
Zoom 3 x Digital Zoom
Resolution 5 MP
Display
Size 7″ LCD with backlight, under-sunlight readable
Resolution 1280 x 800 (1,024,000 pixels)
Touchscreen Capacitive
Acoustic image Yes, SoundMap™ image
Image storage
Storage capacity 20GB (>5000 pictures / >999 videos)
Image format Blended visual and SoundMap™.JPG or .PNG
Video format Blended visual and SoundMap™.MP4
Video length Up to 5 minutes
Digital export USB-C for data transfer
Acoustic Measurements
Measurement range (typical) 12.1 to 114.6dB SPL (±1dB SPL 2kHz)
4.4 to 101.2dB SPL (±2dB SPL 19kHz)
12.8 to 119.2dB SPL (±1dB SPL 35kHz)
19.8 to 116.1dB SPL (±3dB SPL 52kHz)
41.4 to 129.0dB SPL (±1dB SPL 80kHz)
54.4 to 135.5dB SPL (±1dB SPL 100kHz)
Auto max/min dB gain Auto or manual, user selectable
Frequency band selection User selectable through user-made presets or manual entry
Classification and quantification LeakQ™, MecQ™, and PDQ Mode™
Leak size and cost estimation /
Mechanical inspection /
Partial discharge type classification
Software
Ease of use Intuitive user interface
Trend graphs Frequency and dB scale
Spot markers dB level reading at center point of the image
Asset ID QR code based asset ID identification
Asset Inspection Status: ‘As left’, ‘As found’ ; ‘Undetermined’
Photo notes Up to 4 photos notes for reference
Source Show single or multiple sources
Profile Preset capture profiles
Annotation: Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure.
Other Operating conditions; Weather notes
Leak values Leak costs; Leak volume; LeakQ™ scale
Actions Action requirements; Action priority level; Action notes
Battery
Batteries (field-replaceable, rechargeable) 2 x Rechargeable Li-ion
Battery life 6 hours/battery (product includes spare battery)
Battery charging time 3 hours
Battery charging system External charger
General Specifications
Standard palettes 3: Grayscale, Ironbow, Blue-Red
Operating temperature -10 °C to 40 °C (14 °F to 104 °F)
Storage temperature -20 °C to 70 °C (-4 °F to 158 °F) Without batteries
Relative humidity 10 % to 95 % non-condensing
Size (H x W x L) 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches)
Weight (battery included) 2.15 kg (4.7 pounds)
Ingress Protection (IP) IP40
Warranty 2 year
Fluke Premium Care Premium Care Standard**
Self-diagnostic notification Array-health test to identify when the microphone array needs attention
Supported languages Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS compliant Yes
** Subject to regional availability
Safety
General safety IEC 61010-1
Electromagnetic Compatibility (EMC) International IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2
CISPR 11: Group 1, Class A
Korea (KCC) Class A Equipment (Industrial Broadcasting & Communication)
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device

Models: Fluke ii910 Precision Acoustic Imager

FLK-ii910

ii910 Precision Acoustic Imager

Part#: 5233904
UPC#: 1 95112 00816 4

Includes:

  • Imager
  • AC power supply and battery pack charger (including universal AC adapters)
  • Two rugged lithium ion smart battery packs
  • USB cable
  • Rugged, hard carrying case
  • Adjustable hand strap and neck strap
FLUKE-II910/FPC

Fluke ii910 Precision Acoustic Imager Bundled with Premium Care 1-Year Standard Plan

Part#: 5351365
UPC#: 1 95112 04356 1

FPC1S-II910-1

Premium Care 1-Year Standard Plan for Fluke ii910 Precision Acoustic Imager

Part#: 5351341
UPC#: 1 95112 04354 7

FPC3S-II910-1

Premium Care 3-Year Standard Plan for Fluke ii910 Precision Acoustic Imager

Part#: 5351334
UPC#: 1 95112 04353 0
