CRY2304 Noise and vibration analysis system

CRY2300 series noise and vibration analysis system provides a variety of test parameters for noise and vibration and is compatible with CRY2301/CRY2304/CRY2308 three kinds of hardware at the same time. It provides unified software functions and analysis capabilities based on different hardware solutions and configurations.

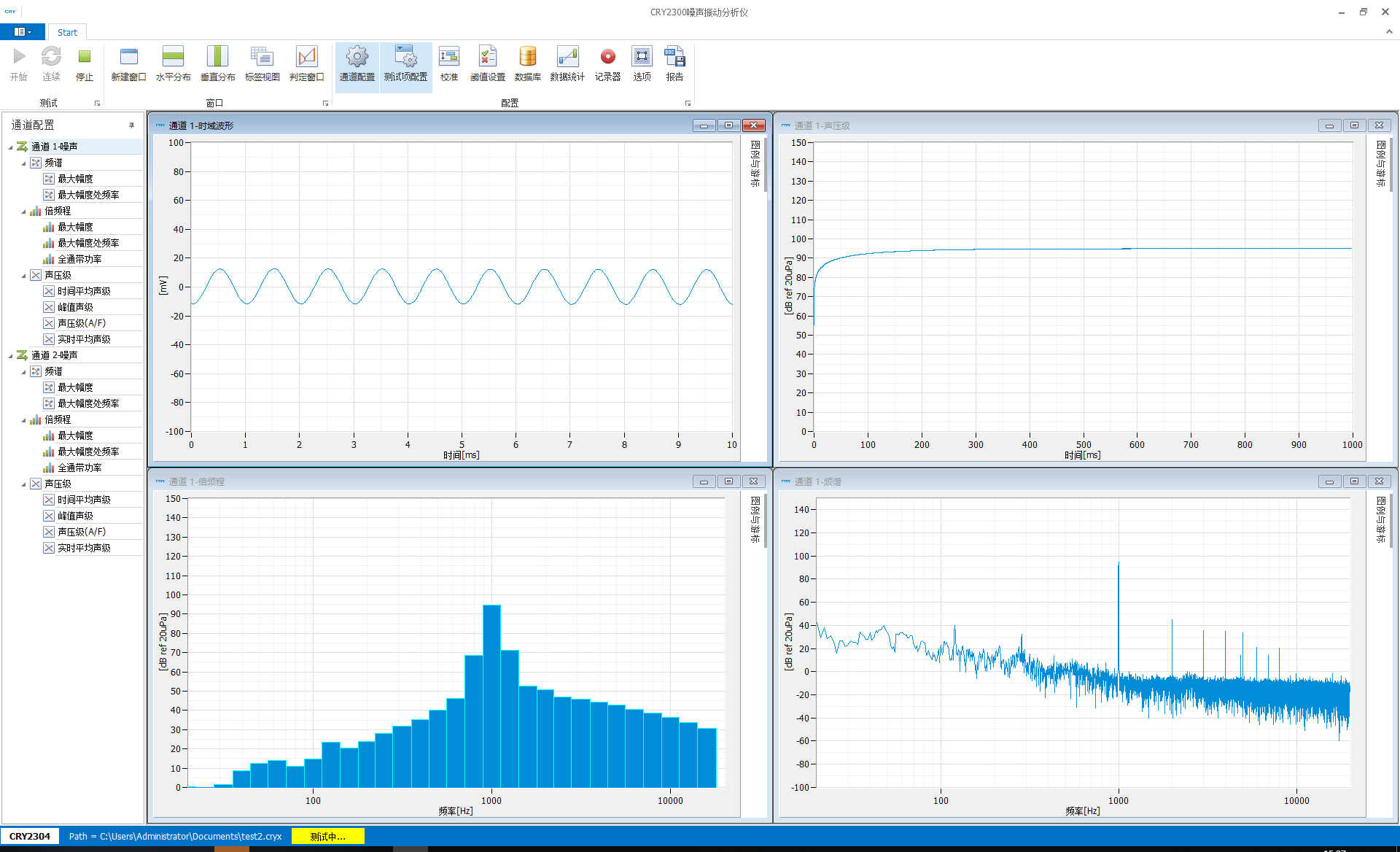

CRY2300 software is designed based on Windows7 and Windows10 operating systems, with a simple and beautiful interface and simple and intuitive operation
Provide noise analysis, vibration analysis, noise and vibration analysis of a variety of test templates
Provide time domain signal analysis, octave analysis, FFT spectrum analysis, and other functions
Provides flexible curve qualification box line setting and numerical qualification threshold setting
The input port supplies a BNC interface with ICP, compatible with noise measurement and vibration measurement
RS-485 port can be used for automatic process control, test results data exchange, etc

Technical specifications of CRY2304

Number of acquisition channels	4-channel input
ADC sampling resolution	24-bit
ADC sampling frequency	44.1kHz~192kHz
Test frequency range	10Hz~80kHz
ICP / IEPE power supply	4mA（24VDC）
Input impedance	10kΩ
Frequency Response	<±0.1dB（20Hz~20kHz）
Gain	-20dB~30dB
Noise floor	-110dBV (Bandwidth: 20kHz, A-weighted)
Total Harmonic Distortion	0.001%（1V，1000Hz）
Equipment power supply	50Hz，220V±10%
Conditions of working environment	Temperature 0 – 40℃ for indoor use; humidity <80% (without condensation)
Structural specification	33228470 mm 3.5kg
Operating environment	Windows7/Windows10 x64/x86
