CRY2308 Noise and vibration analysis system CRY2308

CRY2300 series noise and vibration analysis system provides a variety of test parameters for noise and vibration and is compatible with CRY2301/CRY2304/CRY2308 three kinds of hardware at the same time. It provides unified software functions and analysis capabilities based on different hardware solutions and configurations.

The design of CRY2300 software is based on Windows 7 and Windows 10 OS. Its interface is simple and aesthetic, and its operation is simple and intuitive.
It provides a variety of test templates for noise analysis, vibration analysis, and mixed analysis of noise and vibration.
It provides time domain signal analysis, octave analysis, FFT spectrum analysis, and other functions.
It provides flexible curve pass line settings and numerical pass threshold settings.
The test results are saved in the ACCESS database and exported in the form of a test curve. Export of word files and excel sheets is supported.
The input port is a BNC port, with a switchable ICP power supply design, compatible with noise and vibration measurement, as well as direct input of electric signals.
Equipped with RS-485 port for automated process control and test result data interaction, etc.

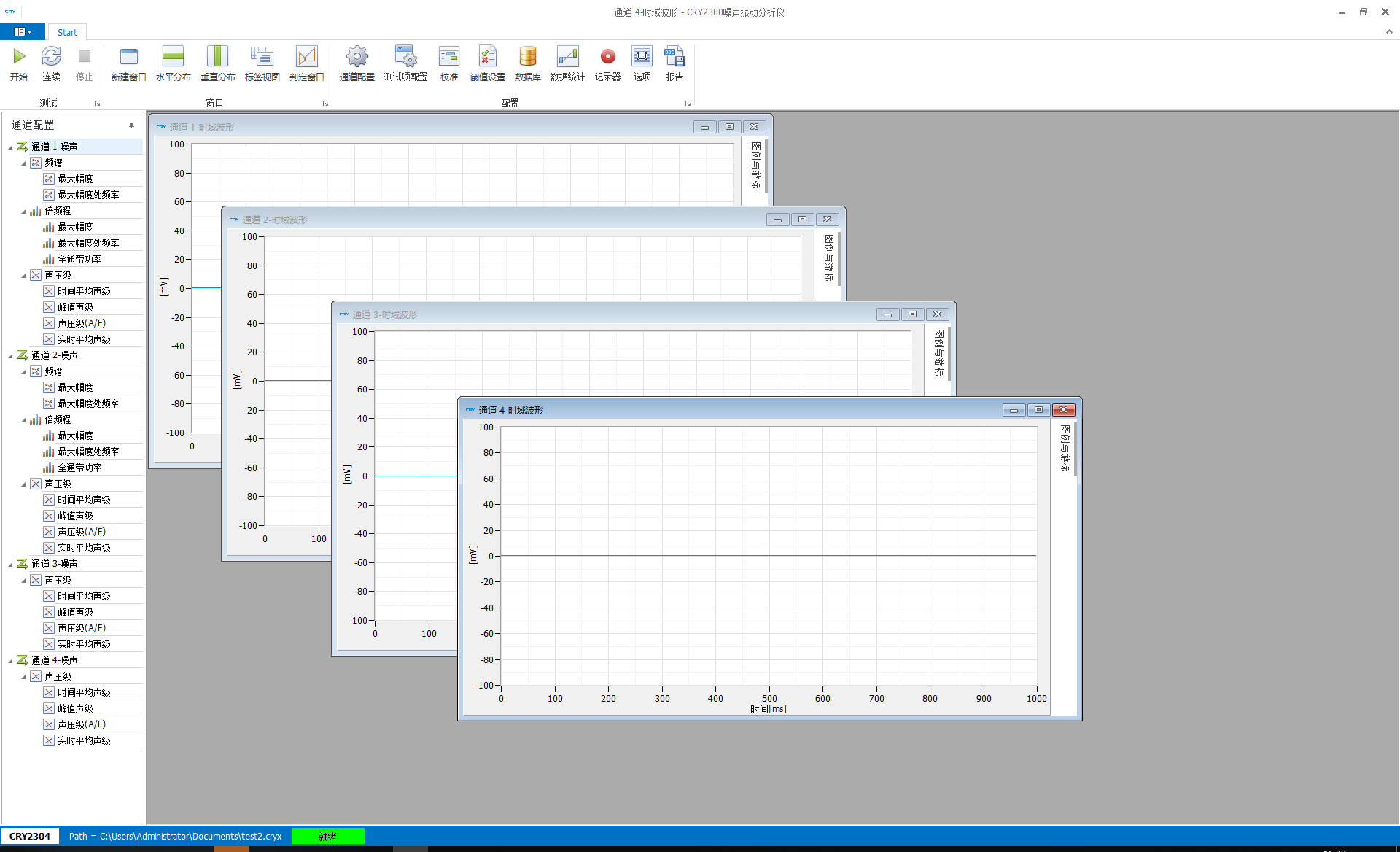

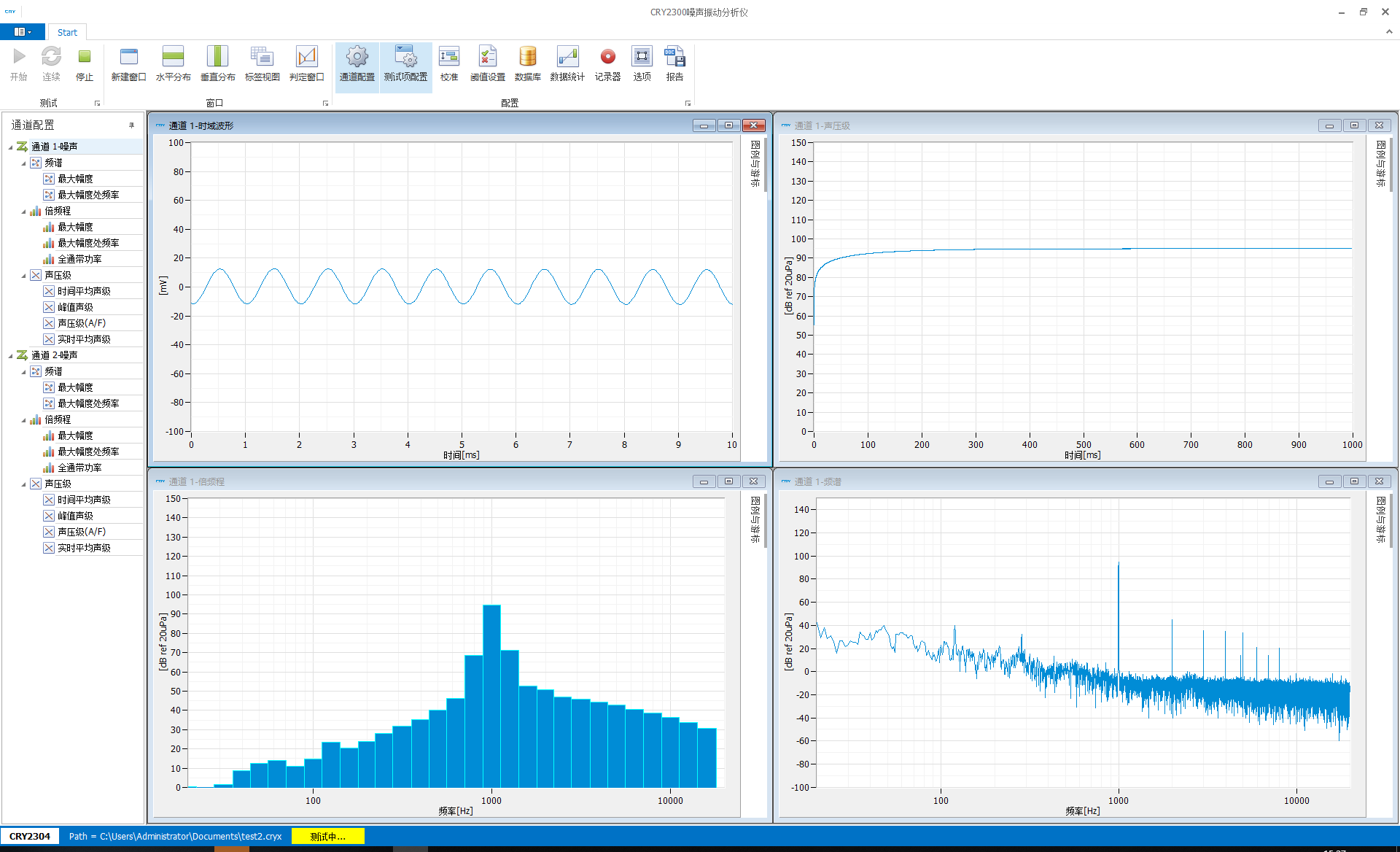

Supporting multi-channel and multi-parameter sub-area display

Aesthetic interface and convenient operation

Technical specifications of CRY2308

Number of acquisition channels	8-channel input
ADC sampling resolution	24-bit
ADC sampling frequency	44.1kHz~192kHz
Test frequency range	10Hz~80kHz
ICP / IEPE power supply	4mA（24VDC）
Input impedance	10kΩ
Frequency Response	<±0.1dB（20Hz~20kHz）
Gain	-20dB~30dB
Noise floor	-110dBV (Bandwidth: 20kHz, A-weighted)
Total Harmonic Distortion	0.001%（1V，1000Hz）
Equipment power supply	50Hz，220V±10%
Conditions of working environment	Temperature 0 – 40℃ for indoor use; humidity <80% (without condensation)
Structural specification	33228470 mm 3.5kg
Operating environment	Windows7/Windows10 x64/x86
