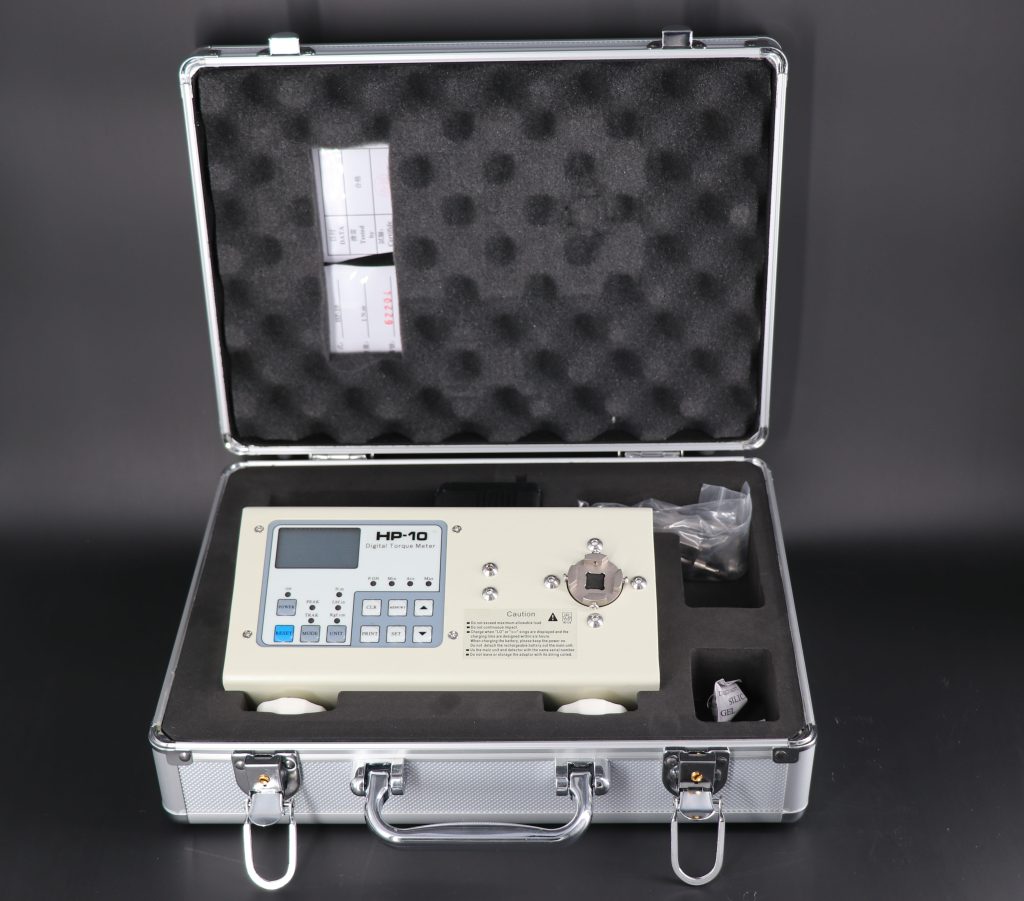

HP series torque tester is designed and manufactured for a variety of torque an intelligent measurement tester. Mainly used for measuring and testing a variety of electric screwdriver, pneumatic size screwdriver, torque screwdriver and torque wrench torque; correcting electric screwdriver, pneumatic screwdrivers, torque screwdrivers and torque wrenches, torque cap torque to conform need; you can also measure the torque of other tools, such as: a variety of fixtures. The torque meter simple operation, high accuracy, full-featured, easy to carry, suitable for a variety of industrial products and service enterprises.
- Product Detail
- Performance
| Type | HP-10 | HP-20 | HP-50 | HP-100 | HP-200 | ||
| Measuring range | lbf.in | 0.05～9.00 | 0.5～18.0 | 0.5～45.0 | 0.5～90.0 | 0.5～180.0 | |
| kgf.cm | 0.05～10.00 | 0.5～20.0 | 0.5～50.0 | 0.5～100.0 | 0.5～200.0 | ||
| N.m | 0.005～1.000 | 0.05～2.00 | 0.05～5.00 | 0.05～10.00 | 0.05～20.00 | ||
| Type | HP-250 | HP-500 | |||||
| Measuring range | lbf.in | 5.0～180 | 5～450 | ||||
| kgf.cm | 5.0～250 | 5～500 | |||||
| N.m | 0.5～25.0 | 0.5～50.0 | |||||
| Test mode | TRACK、PEAK | ||||||
| Accuracy | ±2%Fs | ||||||
| Power supply | Lithium Battery：3.7V 1800mA.h Charging time>8 hours | ||||||
| Sampling rate | 500HZ | ||||||
| Full power continuous use | 45 hours | ||||||
| Battery Life | ≥500 tims | ||||||
| Size/Weight | W×H×D 230mm×50mm×120mm 2Kg | ||||||
| Charger | Input:AC 220V 50HZ Output:DC 9V 350mA | ||||||
| Operating temperature：-10℃一40℃ Operating Humidity： 35％RH一65％RH | |||||||
Note: Communication interface is not included by default. If communication is required, please let us know. The standard communication interface is USB, and RS232 is available as an optional interface.
