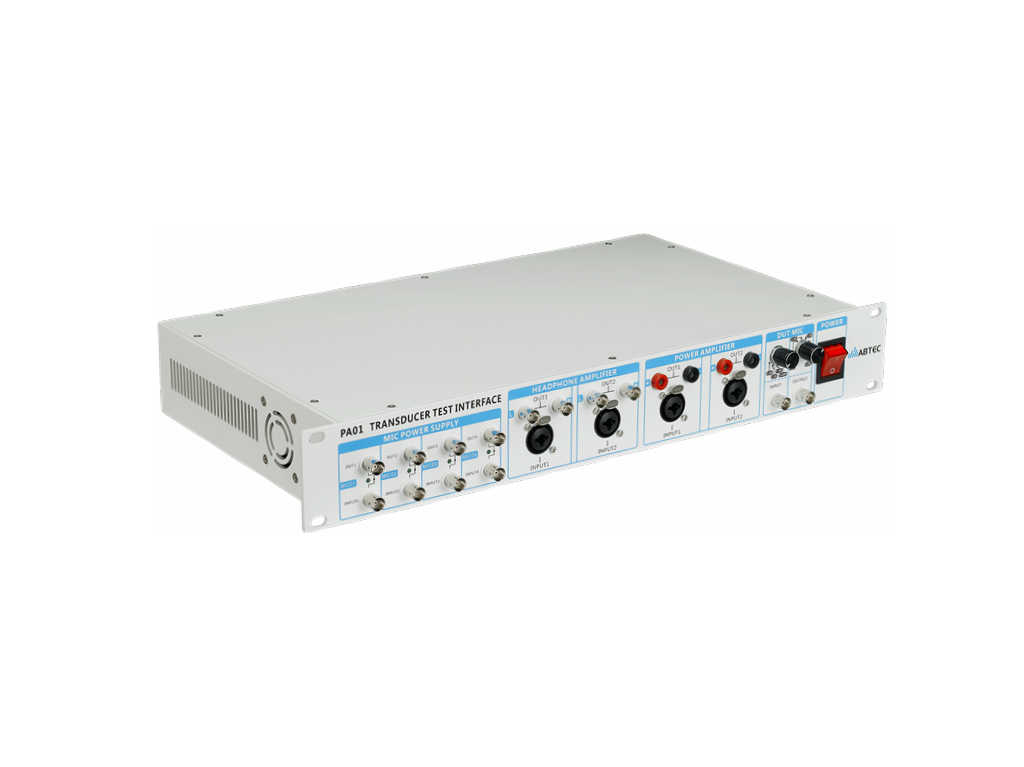

Power Amplifier Power Supply PA01

PA01 is a high-precision, high-efficiency, low-power integrated power amplifier and microphone power supply machine, with a compact appearance structure designed to meet strict requirements, aiming to provide unparalleled quality and performance.

MIC Power Supply
Frequency Response	10Hz-20kHz, ±0.5dB
Signal to Noise Ratio	> 100dB（20Hz-100kHz）
THD+N	< 0.005%
Standard Voltage Gain	0dB/20dB
Input Impedance	40kOhm
Constant Current Source	24V/4mA
Number of I/O Channels	4
Type of I/O Port	BNC
Power Ampliﬁer
Power	10W（8Ohm）, 20W（4Ohm）
Frequency Response	10Hz-100kHz, ±0.5dB
Signal to Noise Ratio	> 90dB（20Hz-100kHz）
THD+N	< 0.01 %
Channel Isolation	> 80dB
Power Bandwidth	5Hz-100kHz,（+0, -3dB）
Input Impedance	20kOhm
Damping Coeﬃcient	> 200
Slew Rate	30V/microsecond
Input Sensitivity	1V（0dBV）
Standard Voltage Gain	0dB /20dB
Idle Power Consumption	6W
Class	AB
Number of I/O Channels	2
Output Port Type	BANANA
Input Port Type	XLR/6.35
Headphone Ampliﬁer
Output Power	800mW（MAX）
Frequency Response	10Hz-100kHz, ±0.5dB
Signal to Noise Ratio	> 100dB（20Hz-100kHz）
THD+N	< 0.005 %
Input Impedance	20kOhm
Standard Voltage Gain	0dB
Class	AB
Number of I/O Channels	2
Output Port Type	BNC
Input Port Type	XLR/6.35
DUT MIC
Number of I/O Channels	1
Type of I/O Port	BNC
Input Terminal (Four Level Resistor)	0.68K/1.5K/2.2K/3.0K
Input terminal (Four Voltage Levels)	1.5V/2.0V/3.0V/5.0V
