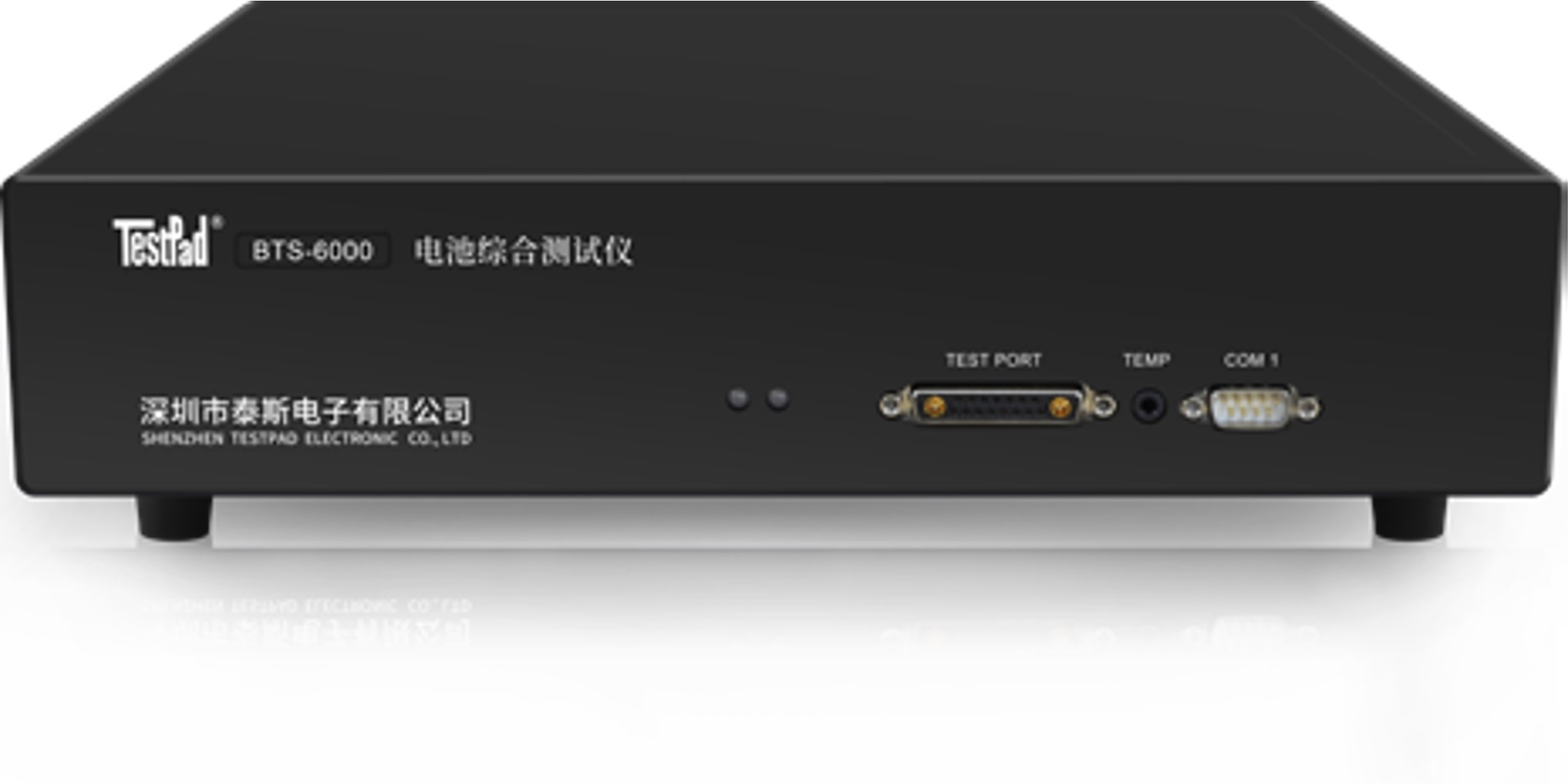

BTS-6000 Battery Comprehensive Tester
(1-4 Battery String Comprehensive Charging overcurrent 20A)
Function introduction
| Conventional performance testing | ||
| 1. Battery activation | 5. Resistance R1 Testing (Thermistor Testing) | 9. Charging test |
| 2. No-load (open-circuit) voltage test | 6. Resistance R2 Testing (Thermistor Testing) | 10.Overcurrent discharge test |
| 3. Internal Resistance Test | 7. Ambient Temperature Monitoring | 11. Overcurrent charging test |
| 4. Short circuit test | 8.Discharge test (DC impedance) | |
| Device Features |
| 1. The instrument is equipped with two serial port interfaces for barcode scanners. |
| 2. The instrument comes with host computer software, which connects to a computer via USB cable for parameter configuration and reserves an automation interface, supporting signal output. |
| 3. Supports local database storage, data querying, and data export |
| 4.Supports remote SQL SERVER database data storage |
| 5. Supports unified management of remote SQL SERVER parameter settings to prevent unauthorized modifications by employees |
| 6. Supports MES system integration |
| Device Features |
| 1. The instrument is equipped with two serial port interfaces for barcode scanners. |
| 2. The instrument comes with host computer software, which connects to a computer via USB cable for parameter configuration and reserves an automation interface, supporting signal output. |
| 3. Supports local database storage, data querying, and data export |
| 4.Supports remote SQL SERVER database data storage |
| 5. Supports unified management of remote SQL SERVER parameter settings to prevent unauthorized modifications by employees |
| 6. Supports MES system integration |
| item | test specification | resolution | Accuracy indicator |
| battery voltage | 0-5V | 0.00001V | ±(0.02%*RD+0.02%*FS) |
| 0-20V | 0.00001V | ±(0.02%*RD+0.02%*FS) | |
| interior resistance of communication | 0-200mΩ | 0.01 mΩ | ±(0.1%*RD+0.1%*FS) |
| 0-2000mΩ | 0.1 mΩ | ±(0.1%*RD+0.1%*FS) | |
| Overcurrent during charging | 0-3A | 0.00001A | ±(0.05%*RD+0.05%*FS) |
| 0-20A | 0.00001A | ±(0.05%*RD+0.05%*FS) | |
| Overcurrent discharge | 0-3A | 0.00001A | ±(0.05%*RD+0.05%*FS) |
| 0-30A | 0.00001A | ±(0.05%*RD+0.05%*FS) | |
| resistance | 0-2KΩ | 0.001 KΩ | ±(0.05%*RD+0.05%*FS) |
| 0-20KΩ | 0.001 KΩ | ±(0.05%*RD+0.05%*FS) | |
| 0-200KΩ | 0.001 KΩ | ±(0.05%*RD+0.05%*FS) | |
| 0-3MΩ | 0.001 KΩ | ±(0.05%*RD+0.05%*FS) | |
| boost voltage | 0-5V | 0.0001V | ±(0.05%*RD+0.05%*FS) |
| leakage current | 0-500uA | 0.01uA | ±(0.05%*RD+0.05%*FS) |
| Product Model | Product Name | Voltage range | Charging overcurrent | Discharge overcurrent | Is it online |
| BTS-2004 | Battery comprehensive tester | 1-4 strings | NO | 12A | NO |
| BTS-2004HS | Battery comprehensive tester | 1-4 strings | NO | 12A | YES |
| BTS-2104 | Battery comprehensive tester | 1-4 strings | NO | 30A | YES |
| BTS-2106 | Battery comprehensive tester | 1-6 strings | NO | 40A | YES |
| BTS-6000 | Battery comprehensive tester | 1-4 strings | 20A | 30A | YES |
| BTS-6400 | Battery comprehensive tester | 1-5 strings | 20A | 40A | YES |
| MPT04S030A | Protective board tester | 1-4 strings | 30A | 30A | YES |
| MPT04S060A | Protective board tester | 1-4 strings | 60A | 60A | YES |
| BTS-8100 48V100A | Battery comprehensive tester | 1-10 strings | 40A | 100A | YES |
