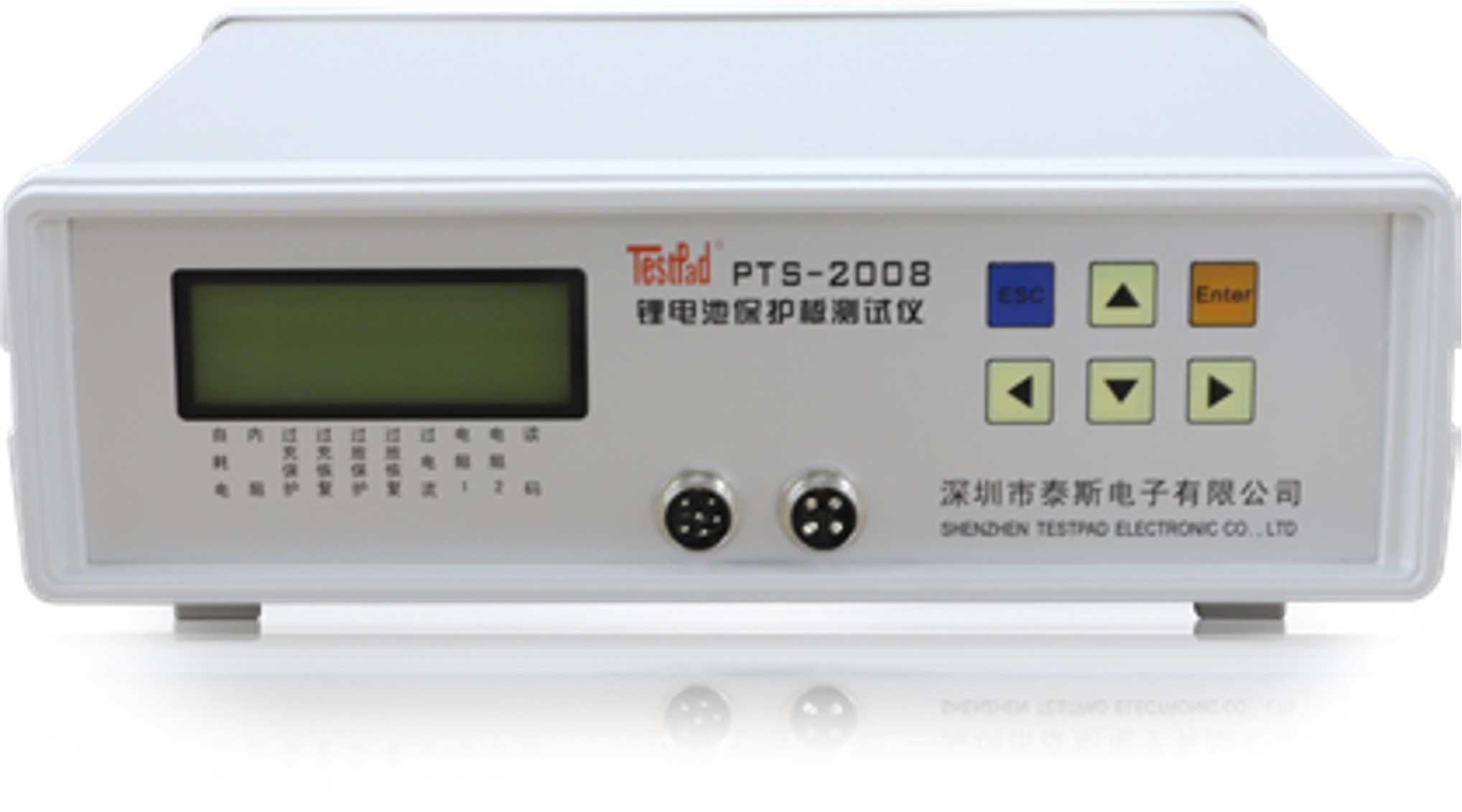

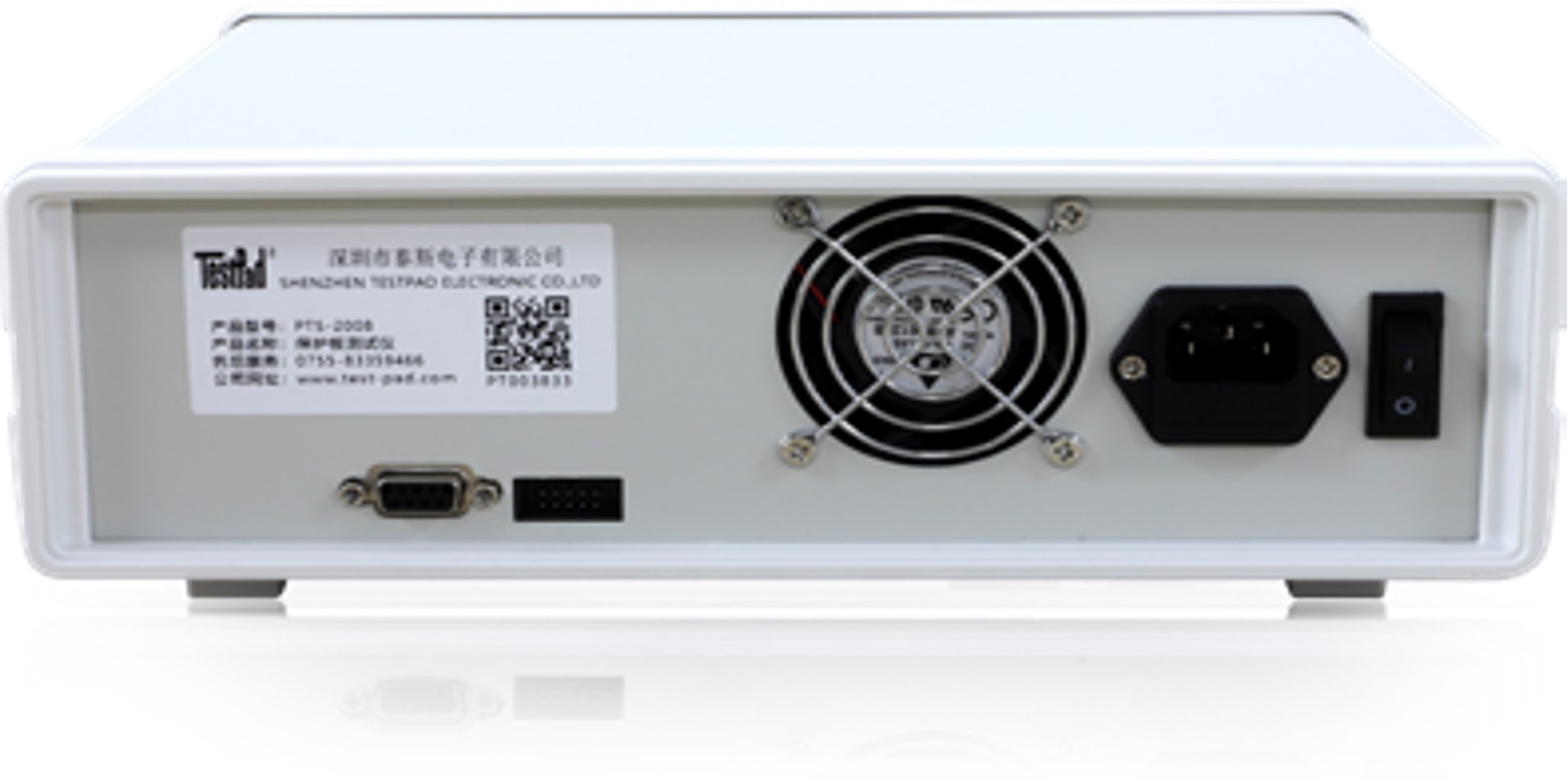

PTS-2008 Lithium Battery Protection Board Tester
Function introduction
| Rapid Testing of Lithium Battery Protection Boards |
| 1.Static power consumption test for the protective board |
| 2. Test of the internal resistance of the protective board |
| 3. Test of the overcharge protection function of the protective board |
| 4.、Test of the overcharge protection and recovery function for the protective board |
| 5. Test of the over-discharge protection function of the protective board |
| 6. Test of the over-discharge protection and recovery function of the protective board |
| 7. Overcurrent protection current testing for the protective board (may include additional short-circuit protection time testing) |
| 8. The battery’s internal identification resistor 1 (or thermistor) performs detection. |
| 9.The battery’s internal identification resistor 2 (or thermistor) performs detection. |
| 10. The battery for the communication chip can undergo communication code testing (currently only applicable to DS2502 compatible chips). |
| Lithium battery protection board delay time test | |||
| 1. Overcharge protection delay time 2. Over-discharge protection delay time3Overcurrent protection delay time | |||
| Product model | Testeable range | English display interface | Computer connectivity function |
| PTS-2008 | Single-cell and dual-cell protection board | YES | NO |
| PTS-2008S | Single-cell and dual-cell protection board | YES | YES |
| measuring range： | Overcharge protection voltage measurement range： 3.000~5.000V ±1mV |
| Measurement range for overcharge protection restoration voltage： 4.200~3.800V ±1mV | |
| Measurement range for overcurrent protection voltage： 3.500~1.500V ±1mV | |
| Measurement range for overcurrent protection restoration voltage： 2.500~3.500V ±1mV | |
| Overcurrent measurement range： 0.10~10.00A ±0.1A | |
| Static current measurement range： 0.3~100.0uA ±0.1uA | |
| Internal resistance measurement range： 0~200 mΩ ±1mΩ | |
| Identification of the resistance measurement range： 0.1~999.9KΩ ±0.1KΩ（within 10KΩ） | |
| Overcharge protection delay time： 0~5000mS ±1mS （1mS=0.001 秒） | |
| Overcurrent protection delay time:： 0~1000mS ±1mS | |
| Overcurrent protection delay time： 0~100mS ±1mS | |
| Test Speed： | Fast test: As fast as 1 second (only for single-cell protection boards with overcharge protection delay of 10mS) |
| Accurate test: As fast as 1.7 seconds (only for single-cell protection boards with overcharge protection delay of 10mS) |
